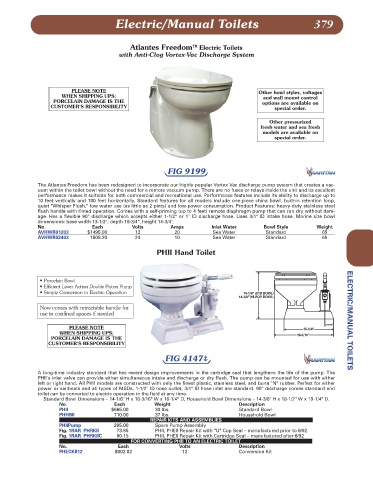

Electric/Manual Toilets 379

Atlantes Freedom™ Electric Toilets
with Anti-Clog Vortex-Vac Discharge System

PLEASE NOTE Other bowl styles, voltages
WHEN SHIPPING UPS: and wall mount control
PORCELAIN DAMAGE IS THE options are available on
CUSTOMER'S RESPONSIBILITY special order.

Other pressurized
fresh water and sea fresh
models are available on
special order.

FIG 9199

The Atlantes Freedom has been redesigned to incorporate our highly popular Vortex Vac discharge pump system that creates a vac-
uum within the toilet bowl without the need for a remote vacuum pump. There are no fuses or relays inside the unit and its excellent
performance makes it suitable for both commercial and recreational use. Performance features include its ability to discharge up to
10 feet vertically and 100 feet horizontally. Standard features for all models include one-piece china bowl, built-in retention loop,
quiet "Whisper Flush," low water use (as little as 2 pints) and low-power consumption. Product Features: heavy-duty stainless steel
flush handle with timed operation. Comes with a self-priming (up to 4 feet) remote diaphragm pump that can run dry without dam-
age. Has a flexible 90° discharge which accepts either 1-1/2" or 1" ID discharge hose. Uses 3/4" ID intake hose. Marine size bowl
dimensions: base width 13-1/2", depth 18-3/4", height 14-3/4".
No. Each Volts Amps Inlet Water Bowl Style Weight
AVHWR01203 $1495.00 12 20 Sea Water Standard 65
AVHWR02403 1508.20 24 10 Sea Water Standard 65

PHII Hand Toilet

• Porcelain Bowl
• Efficient Lever Action Double Piston Pump
• Simple Conversion to Electric Operation

Now comes with retractable handle for
use in confined spaces if needed ELECTRIC/MANUAL TOILETS

PLEASE NOTE
WHEN SHIPPING UPS:
PORCELAIN DAMAGE IS THE
CUSTOMER'S RESPONSIBILITY

FIG 4147b

A long-time industry standard that has recent design improvements in the cartridge seal that lengthens the life of the pump. The
PHII's inlet valve can provide either simultaneous intake and discharge or dry flush. The pump can be mounted for use with either
left or right hand. All PHII models are constructed with only the finest plastic, stainless steel, and buna "N" rubber. Perfect for either
power or sailboats and all types of MSDs. 1-1/2" ID hose outlet, 3/4" ID hose inlet are standard. 90° discharge comes standard and
toilet can be converted to electric operation in the field at any time.
Standard Bowl Dimensions – 14-1/6" H x 18-3/16" W x 16-1/4" D, Household Bowl Dimensions – 14-3/8" H x 18-1/2" W x 19-1/4" D.
No. Each Weight Description
PHII $665.00 30 lbs. Standard Bowl
PHHBII 710.00 37 lbs. Household Bowl
REPAIR KITS AND ASSEMBLIES
PHIIPump 295.00 Spare Pump Assembly
Fig. 1RAR PHRKII 73.85 PHII, PHEII Repair Kit with "U" Cup Seal – manufactured prior to 6/92
Fig. 1RAR PHRKIIC 80.15 PHII, PHEII Repair Kit with Cartridge Seal – manufactured after 6/92
FOR CONVERTING PHII TO AN ELECTRIC TOILET
No. Each Volts Description
PHECKII12 $802.02 12 Conversion Kit
