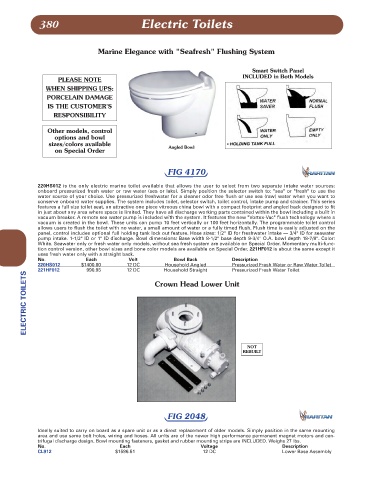

380 Electric Toilets

Marine Elegance with " Seafresh" Flushing System

Smart Switch Panel
INCLUDED in Both Models
PLEASE NOTE
WHEN SHIPPING UPS:
PORCELAIN DAMAGE
IS THE CUSTOMER'S
RESPONSIBILITY

Other models, control
options and bowl
sizes/colors available Angled Bowl •
on Special Order

FIG 4170

220HS012 is the only electric marine toilet available that allows the user to select from two separate intake water sources:
onboard pressurized fresh water or raw water (sea or lake). Simply position the selector switch to: "sea" or "fresh" to use the
water source of your choice. Use pressurized freshwater for a cleaner odor free flush or use sea (raw) water when you want to
conserve onboard water supplies. The system includes toilet, selector switch, toilet control, intake pump and strainer. This series
features a full size toilet seat, an attractive one piece vitreous china bowl with a compact footprint and angled back designed to fit
in just about any area where space is limited. They have all discharge working parts contained within the bowl including a built in
vacuum breaker. A remote sea water pump is included with the system. It features the new "Vortex-Vac" flush technology where a
vacuum is created in the bowl. These units can pump 10 feet vertically or 100 feet horizontally. The programmable toilet control
allows users to flush the toilet with no water, a small amount of water or a fully timed flush. Flush time is easily adjusted on the
panel, control includes optional full holding tank lock out feature. Hose sizes: 1/2" ID for freshwater intake — 3/4" ID for seawater
pump intake. 1-1/2" ID or 1" ID discharge. Bowl dimensions: Base width 8-1/2" base depth 9-3/4" O.A. bowl depth 18-7/8". Color:
White. Seawater only or fresh water only models, without sea fresh system are available on Special Order. Momentary multi-func-
tion control version, other bowl sizes and bone color models are available on Special Order. 221HF012 is about the same except it
uses fresh water only with a straight back.
No. Each Volt Bowl Back Description
220HS012 $1400.00 12 DC Household Angled Pressurized Fresh Water or Raw Water Toilet
Household Straight
Pressurized Fresh Water Toilet
221HF012 990.95 12 DC Crown Head Lower Unit
ELECTRIC TOILETS

NOT
REBUILT

FIG 2048

Ideally suited to carry on board as a spare unit or as a direct replacement of older models. Simply position in the same mounting
area and use same bolt holes, wiring and hoses. All units are of the newer high performance permanent magnet motors and cen-
trifugal discharge design. Bowl mounting fasteners, gasket and rubber mounting strips are INCLUDED. Weighs 27 lbs.
No. Each Voltage Description
CL912 $1586.51 12 DC Lower Base Assembly
