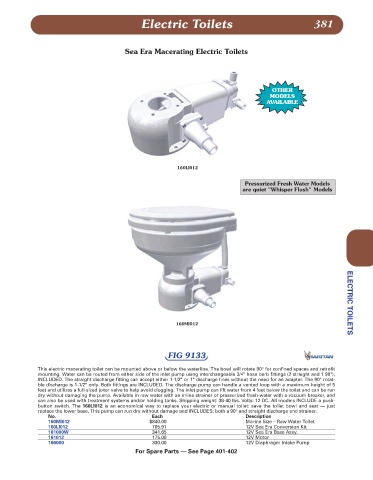

Page 382 - Lewis

Electric Toilets 381

Sea Era Macerating Electric Toilets

OTHER
MODELS
AVAILABLE

160LI012

Pressurized Fresh Water Models
are quiet "Whisper Flush" Models

160MI012 ELECTRIC TOILETS

FIG 9133

This electric macerating toilet can be mounted above or below the waterline. The bowl will rotate 90° for confined spaces and retrofit
mounting. Water can be routed from either side of the inlet pump using interchangeable 3/4" hose barb fittings (2 straight and 1 90°),
INCLUDED. The straight discharge fitting can accept either 1-1/2" or 1" discharge lines without the need for an adapter. The 90° rotat-
ble discharge is 1-1/2" only. Both fittings are INCLUDED. The discharge pump can handle a vented loop with a maximum height of 5
feet and utilizes a full-sized joker valve to help avoid clogging. The inlet pump can lift water from 4 feet below the toilet and can be run
dry without damaging the pump. Available in raw water with an inline strainer or pressurized fresh-water with a vacuum breaker, and
can also be used with treatment systems and/or holding tanks. Shipping weight: 38-40 lbs. Volts: 12 DC. All models INCLUDE a push-
button switch. The 160LI012 is an economical way to replace your electric or manual toilet: save the toilet bowl and seat — just
replace the lower base. This pump can run dry without damage and INCLUDES: both a 90° and straight discharge and strainer.
No. Each Description
160MI012 $840.00 Marine Size – Raw Water Toilet
160LI012 705.91 12V Sea Era Conversion Kit
161000W 341.65 12V Sea Era Base Assy.
161012 175.00 12V Motor
166000 330.00 12V Diaphragm Intake Pump
For Spare Parts — See Page 401-402
