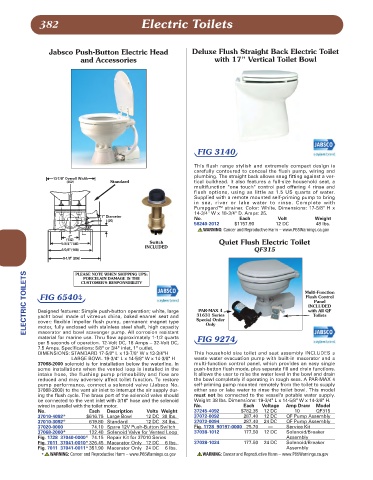

382 Electric Toilets

Jabsco Push-Button Electric Head Deluxe Flush Straight Back Electric Toilet
and Accessories with 17" Vertical Toilet Bowl

FIG 3140

This flush range stylish and extremely compact design is
carefully contoured to conceal the flush pump, wiring and
plumbing. The straight back allows snug fitting against a ver-
Standard tical bulkhead. It also features a full-size household seat, a
multifunction "one touch" control pad offering 4 rinse and
flush options, using as little as 1.5 US quarts of water.
Supplied with a remote mounted self-priming pump to bring
in sea, river or lake water to rinse. Complete with
Pumpgard™ strainer. Color: White. Dimensions: 17-5/8" H x
14-3/4" W x 18-3/4" D. Amps: 25.
No. Each Volt Weight
58240-2012 $1157.90 12 DC 48 lbs.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Switch Quiet Flush Electric Toilet
INCLUDED
QF315

ELECTRIC TOILETS Designed features: Simple push-button operation; white, large 31631 Series Multi-Function
PLEASE NOTE WHEN SHIPPING UPS:
PORCELAIN DAMAGE IS THE
CUSTOMER'S RESPONSIBILITY
FIG 6540b
Flush Control
Panel
INCLUDED
PAR-MAX 4
with All QF
Toilets
yacht bowl made of vitreous china, baked enamel seat and
Special Order
cover; flexible impeller flush pump, permanent magnet type
Only
motor, fully enclosed with stainless steel shaft, high capacity
macerator and bowl scavenger pump. All corrosion resistant
material for marine use. Thru flow approximately 1-1/2 quarts FIG 9274
per 5 seconds of operation. 12-Volt DC, 18 Amps – 32-Volt DC,
7.5 Amps. Specifications: 5/8" or 3/4" inlet, 1" outlet.
DIMENSIONS: STANDARD 17-5/8" L x 13-7/8" W x 13-3/4"H This household size toilet and seat assembly INCLUDES a
LARGE BOWL 19-3/4" L x 14-5/8" W x 14-3/8" H waste water evacuation pump with built-in macerator and a
37068-2000 solenoid is for installation below the waterline. In multi-function control panel, which provides an easy single
some installations when the vented loop is installed in the push-button flush mode, plus separate fill and drain functions.
intake hose, the flushing pump primeability and flow are It allows the user to raise the water level in the bowl and drain
reduced and may adversely affect toilet function. To restore the bowl completely if operating in rough seas. A PAR-MAX 4
pump performance, connect a solenoid valve (Jabsco No. self-priming pump mounted remotely from the toilet to supply
37068-2000) to the vent air inlet to interrupt the air supply dur- either sea or lake water to rinse the toilet bowl. This model
ing the flush cycle. The brass port of the solenoid valve should must not be connected to the vessel's potable water supply.
be connected to the vent inlet with 3/16" hose and the solenoid Weight: 38 lbs. Dimensions: 19-3/4" L x 14-5/8" W x 14-3/8" H.
wired in parallel with the toilet motor. No. Each Voltage Amp Draw Model
No. Each Description Volts Weight 37245-4092 $782.35 12 DC 10 QF315
37010-4092* $616.75 Large Bowl 12 DC 38 lbs. 37072-0092 287.40 12 DC QF Pump Assembly
37010-3092* 619.80 Standard 12 DC 34 lbs. 37072-0094 287.40 24 DC QF Pump Assembly
37020-0000 74.10 Spare 12V Push-Button Switch Fig. 1728 90197-0000 25.70 — Service Kit
37068-2000* 122.40 Solenoid Valve for Vented Loop 37038-1012 177.50 12 DC Solenoid/Breaker
Fig. 1728 37040-0000* 74.15 Repair Kit for 37010 Series Assembly
Fig. 7011 37041-0010* 326.45 Macerator Only 12 DC 6 lbs. 37038-1024 177.50 24 DC Solenoid/Breaker
Fig. 7011 37041-0011* 351.90 Macerator Only 24 DC 6 lbs. Assembly
* WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
