Sonar Technology
GPSMAP 7600 Series GPSMAP 1002/1202 Series
®
®

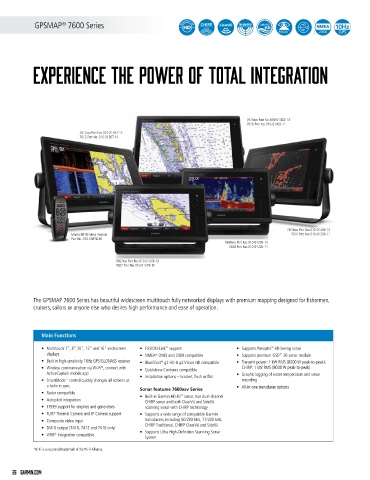

EXPERIENCE THE POWER OF TOTAL INTEGRATION 1242xsv Part No: 010-01741-11
Cartography & Apps

1042xsv Part No: 010-01740-11
7616xsv Part No: 010-01402-13
7616 Part No: 010-01402-11
7612xsv Part No: 010-01307-13
Software & Features
7612 Part No: 010-01307-11

Chartplotters & Combos

7610xsv Part No: 010-01306-13
Marine RF Wireless Remote 7610 Part No: 010-01306-11
Part No: 010-10878-10
7608xsv Part No: 010-01305-13
7608 Part No: 010-01305-11
7607xsv Part No: 010-01379-13 Keyed Networking Chartplotters
7607 Part No: 010-01379-11 Fishfinders
and Combos

Experience advanced all-in-one solutions with these keyed combos. Large, bright 10” or 12” screens coupled with quick and easy-to-use
The GPSMAP 7600 Series has beautiful widescreen multitouch fully networked displays with premium mapping designed for fishermen, keypad interface with user-progammable keys and a multifunction control knob. Available with built-in Garmin CHIRP sonar and CHIRP
cruisers, sailors or anyone else who desires high performance and ease of operation.
ClearVü scanning sonar (transducers sold separately). Also available with both U.S. LakeVü HD maps and BlueChart g2 HD charts.
®
Wearables & Handhelds
Main Functions
Main Functions
• Multitouch 7", 8",10", 12" and 16" widescreen • FUSION-Link support • Supports Panoptix All-Seeing sonar • Large, bright 10” or 12” screens with keypad interface and multifunction control knob Sonar Features
™
™
displays • NMEA 0183 and 2000 compatible • Supports premium GSD 26 sonar module • Built-in high-sensitivity 10Hz GPS/GLONASS receiver • Garmin single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar
™
®
• Built in high-sensitivity 10Hz GPS/GLONASS receiver • BlueChart g2 HD & g2 Vision HD compatible • Transmit power: 1 kW RMS (8000 W peak-to-peak); • Include both U.S. LakeVü HD maps and BlueChart g2 charts (transducers sold separately)
®
®
• Wireless communication via Wi-Fi , connect with • Quickdraw Contours compatible CHIRP: 1 kW RMS (8000 W peak-to-peak) • Include Quickdraw Contours map drawing software • Supports Ultra High-Definition Scanning Sonar System
®
™
ActiveCaptain mobile app • Graphic logging of water temperature and sonar • Support Garmin Marine Network; allows sharing of sonar, radar, maps, user data, • Supports Panoptix all-seeing sonar and premium Garmin sonar modules
• Installation options – bracket, flush or flat
®
™
• SmartMode control quickly changes all screens at recording NMEA 2000 and NMEA 0183 support for network connectivity, including autopilots,
a helm in sync • All-in-one transducer options digital switching, weather, media, VHF, AIS and other sensors
Sonar features 7600xsv Series Specs & Networks
• Radar compatible • Built-in Garmin HD-ID sonar, true dual-channel • Built-in wireless capabilities for ActiveCaptain app and VIRB action camera
®
™
• Autopilot integration CHIRP sonar and both ClearVü and SideVü integration
®
®
• J1939 support for engines and generators scanning sonar with CHIRP technology • Integrated ANT support for use with quatix 3 and quatix 5 marine watch, Garmin

™
™
• FLIR Thermal Camera and IP Camera support • Supports a wide range of compatible Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marine instrument
®
and wireless remote controls
• Composite video input transducers, including 50/200 kHz, 77/200 kHz, • Supports optional U.S. LakeVü HD Ultra maps and BlueChart g2 Vision HD charts
®
®
• DVI-D output (7410, 7412 and 7416 only) CHIRP Traditional, CHIRP ClearVü and SideVü with Auto Guidance, satellite imagery, 3-D perspectives and more
• Supports Ultra High-Definition Scanning Sonar
®
• VIRB Integration compatible
System
Pricing & Support
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
