Sonar Technology
Panoptix ™ Panoptix ™

Panoptix features

Cartography & Apps

RealVü 3D Historical RealVü 3D Down LiveVü Down
Used for finding fish located throughout the Allows your boat to be stationary yet still Shows fish swimming, moving toward or
entire water column, in 3D, from bottom see things around your boat in 3D. away from your boat – even your lure – in Software & Features
to surface. real time.

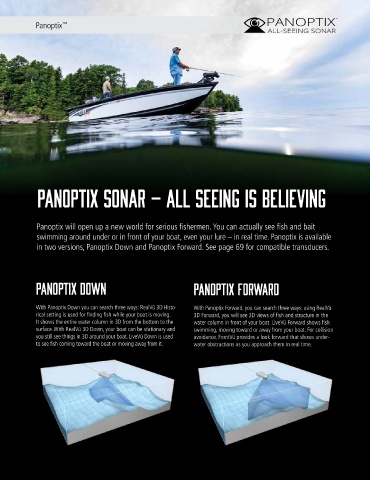

Panoptix sonar – all seeing is believing Chartplotters & Combos

Panoptix will open up a new world for serious fishermen. You can actually see fish and bait
swimming around under or in front of your boat, even your lure – in real time. Panoptix is available RealVü 3D Forward LiveVü Forward FrontVü
in two versions, Panoptix Down and Panoptix Forward. See page 69 for compatible transducers. Sweeps forward to show you 3D views of Has a more live video look, showing fish Provides a look forward that shows
the bottom, structure and fish in the water swimming – even your lure, moving toward underwater obstructions as you approach
column in front of the boat. or away from your boat. them in real time.
Fishfinders

Panoptix Down Panoptix Forward FrontVü

With Panoptix Down you can search three ways: RealVü 3D Histo- With Panoptix Forward, you can search three ways: using RealVü Panoptix FrontVü sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the
rical setting is used for finding fish while your boat is moving. 3D Forward, you will see 3D views of fish and structure in the current depth) and delivers nearly instant feedback to give you more time to react. You can be
It shows the entire water column in 3D from the bottom to the water column in front of your boat. LiveVü Forward shows fish more confident when navigating unfamiliar water because Panoptix FrontVü has a narrow beam,
surface. With RealVü 3D Down, your boat can be stationary and swimming, moving toward or away from your boat. For collision forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat Wearables & Handhelds
you still see things in 3D around your boat. LiveVü Down is used avoidance, FrontVü provides a look forward that shows under- and not be confused with what is off to each side. It also includes an AHRS sensor for motion
stabilization that allows you to see what is in front of your boat even in rough water conditions.
to see fish coming toward the boat or moving away from it. water obstructions as you approach them in real time.

Transducer PS21-TM PS21-TR PS22-TR PS30 PS31 PS51 PS60
RealVü 3D Down ✔ ✔
RealVü 3D Historical ✔ ✔ Specs & Networks
LiveVü Down ✔ ✔ ✔
RealVü 3D Forward ✔
LiveVü Forward ✔ ✔ ✔ ✔ ✔
FrontVü Forward ✔ ✔ ✔ ✔ ✔
Garmin Marine Network Compatible ✔ ✔ ✔ ✔ ✔ ✔ ✔
Independent Power Connection ✔ ✔ ✔ ✔ ✔ ✔ ✔
Transom Mount Included ✔ 2 ✔ ✔ 2
Trolling Motor Mount Included ✔ ✔ ✔
Thru-Hull Mount and Fairing Block ✔ ✔ Pricing & Support

The forward-facing transom mount transducer should be mounted in a location that is out of the water at speeds over 17 Kn. If located below the water line, cruising speeds over 21 Kn should be avoided.
