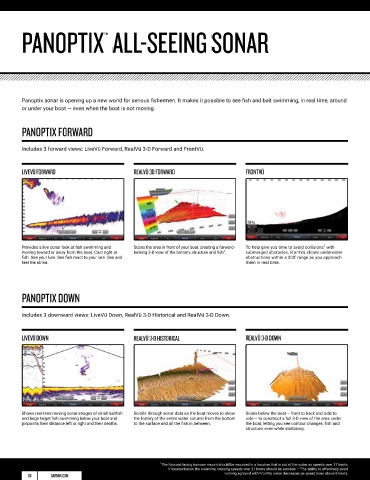

PANOPTIX ALL-SEEING SONAR PANOPTIX ALL-SEEING SONAR
™
™

Panoptix sonar is opening up a new world for serious fishermen. It makes it possible to see fish and bait swimming, in real time, around PANOPTIX FRONTVÜ SONAR
or under your boat — even when the boat is not moving.
Multibeam thru-hull transducer with premium FrontVü forward-looking sonar helps you
PANOPTIX FORWARD avoid running aground¹ by displaying the bottom ahead of your boat in real time on your
chartplotter. It also includes LiveVü Forward sonar to show you fish — even divers —
swimming in real time under and ahead of your boat with
Includes 3 forward views: LiveVü Forward, RealVü 3-D Forward and FrontVü. a 300' forward range.

LIVEVÜ FORWARD REALVÜ 3D FORWARD FRONTVÜ

2
Provides a live sonar look at fish swimming and Scans the area in front of your boat, creating a forward- To help give you time to avoid collisions with
moving toward or away from the boat. Cast right at looking 3-D view of the bottom, structure and fish . 1 submerged obstacles, FrontVü shows underwater
fish. See your lure. See fish react to your lure. See and obstructions within a 300' range as you approach
feel the strike. them in real time.

PANOPTIX DOWN

Includes 3 downward views: LiveVü Down, RealVü 3-D Historical and RealVü 3-D Down.

LIVEVÜ DOWN REALVÜ 3-D HISTORICAL REALVÜ 3-D DOWN

THE LINEUP PS21-TM PS22-TR PS30 PS31 PS51-TH PS60

010-01588-01 010-01945-00 010-01284-00 010-01284-01 010-01753-00 010-01406-00
RealVü 3-D Down • •
RealVü 3-D Historical • •
LiveVü Down • • •
RealVü 3-D Forward •
Shows real-time moving sonar images of small baitfish Scrolls through sonar data as the boat moves to show Scans below the boat – front to back and side to LiveVü Forward • • • •
and large target fish swimming below your boat and the history of the entire water column from the bottom side – to construct a full 3-D view of the area under
pinpoints their distance left or right and their depths. to the surface and all the fish in between. the boat, letting you see contour changes, fish and FrontVü Forward • • • •
structure, even while stationary. Independent Power Connection • • • • • •
Transom Mount Included • 2 • • 2
Trolling Motor Mount Included • •
Thru-Hull Mount and Fairing Block • •

1 The forward-facing transom mount should be mounted in a location that is out of the water as speeds over 17 knots.
2
2
If located below the waterline, cruising speeds over 21 knots should be avoided. • The ability to effectively avoid ¹The ability to effectively avoid running aground with FrontVü sonar decreases as speed rises above 8 knots. • The forward-facing transom mount should
06 GARMIN.COM running aground with FrontVü sonar decreases as speed rises above 8 knots. be mounted in a location that is out of the water as speeds over 17 knots. If located below the waterline, cruising speeds over 21 knots should be avoided. GARMIN.COM 07
