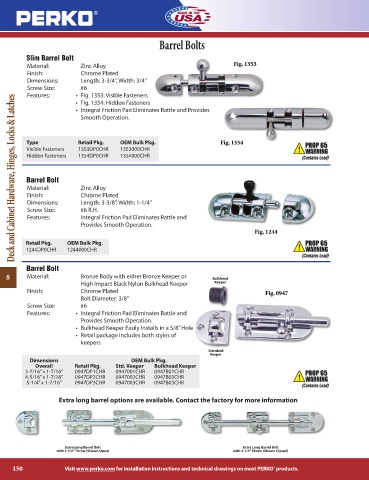

Page 150 - Perko

Barrel Bolts

Slim Barrel Bolt
Fig. 1353
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Length: 3-3/4”, Width: 3/4”
Screw Size: #6
Features: • Fig. 1353: Visible Fasteners
Deck and Cabinet Hardware, Hinges, Locks & Latches
• Fig. 1354: Hidden Fasteners
• Integral Friction Pad Eliminates Rattle and Provides
Smooth Operation.

Type Retail Pkg. OEM Bulk Pkg. Fig. 1354
Visible Fasteners 1353DP0CHR 1353000CHR
Hidden Fasteners 1354DP0CHR 1354000CHR

Barrel Bolt
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Length: 3-3/8”, Width: 1-1/4”
Screw Size: #6 R.H.
Features: Integral Friction Pad Eliminates Rattle and
Provides Smooth Operation.
Fig. 1244
Retail Pkg. OEM Bulk Pkg.
1244DP0CHR 1244000CHR

Barrel Bolt
8 Material: Bronze Body with either Bronze Keeper or Bulkhead
High Impact Black Nylon Bulkhead Keeper Keeper
Finish: Chrome Plated Fig. 0947
Bolt Diameter: 3/8”
Screw Size: #6
Features: • Integral Friction Pad Eliminates Rattle and
Provides Smooth Operation.
• Bulkhead Keeper Easily Installs in a 5/8” Hole
• Retail package includes both styles of
keepers
Standard
Keeper
Dimensions OEM Bulk Pkg.
Overall Retail Pkg. Std. Keeper Bulkhead Keeper
3-7/16” x 1-7/16” 0947DP1CHR 0947001CHR 0947B01CHR
4-5/16” x 1-7/16” 0947DP2CHR 0947002CHR 0947B02CHR
5-1/4” x 1-7/16” 0947DP3CHR 0947003CHR 0947B03CHR

Extra long barrel options are available. Contact the factory for more information

Extra Long Barrel Bolt Extra Long Barrel Bolt
with 2-1/2” Throw (Shown Open) with 2-1/2” Throw (Shown Closed)

150 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
