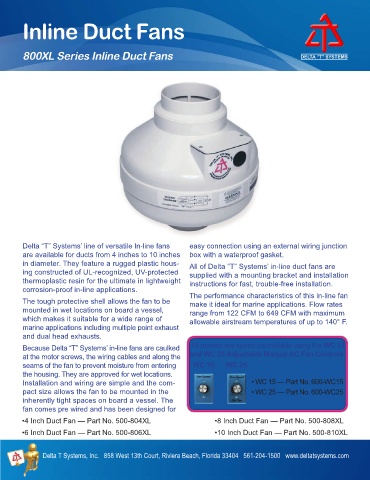

Inline Duct Fans
800XL Series Inline Duct Fans
Delta “T” Systems’ line of versatile In-line fans easy connection using an external wiring junction
are available for ducts from 4 inches to 10 inches box with a waterproof gasket.
in diameter. They feature a rugged plastic hous- All of Delta “T” Systems’ in-line duct fans are
ing constructed of UL-recognized, UV-protected supplied with a mounting bracket and installation
thermoplastic resin for the ultimate in lightweight instructions for fast, trouble-free installation.
corrosion-proof in-line applications.
The tough protective shell allows the fan to be The performance characteristics of this in-line fan
make it ideal for marine applications. Flow rates
mounted in wet locations on board a vessel, range from 122 CFM to 649 CFM with maximum
which makes it suitable for a wide range of allowable airstream temperatures of up to 140° F.
marine applications including multiple point exhaust
and dual head exhausts.
Because Delta “T” Systems’ in-line fans are caulked All models are speed controllable using the WC 15
at the motor screws, the wiring cables and along the and WC 25 Adjustable Manual AC Fan Controls.
seams of the fan to prevent moisture from entering WC 15 WC 25
the housing. They are approved for wet locations.
Installation and wiring are simple and the com- • WC 15 — Part No. 600-WC15
pact size allows the fan to be mounted in the • WC 25 — Part No. 600-WC25
inherently tight spaces on board a vessel. The
fan comes pre wired and has been designed for
•4 Inch Duct Fan — Part No. 500-804XL •8 Inch Duct Fan — Part No. 500-808XL
•6 Inch Duct Fan — Part No. 500-806XL •10 Inch Duct Fan — Part No. 500-810XL
Delta T Systems, Inc. 858 West 13th Court, Riviera Beach, Florida 33404 561-204-1500 www.deltatsystems.com
