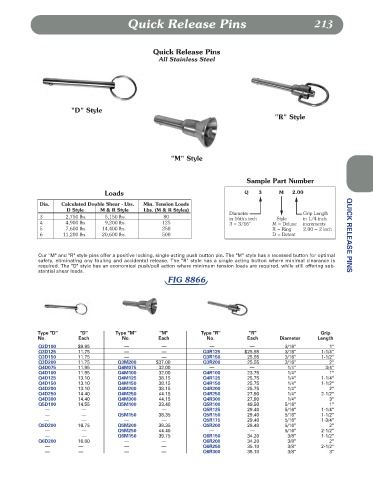

Quick Release Pins 213

Quick Release Pins
All Stainless Steel

"D" Style
"R" Style

"M" Style

Sample Part Number
Loads Q 3 M 2.00

Dia. Calculated Double Shear - Lbs. Min. Tension Loads
D Style M & R Style Lbs. (M & R Styles)
Diameter Grip Length
3 2,750 lbs. 5,150 lbs. 80 in 16th's inch Style in 1/4 inch
4 4,900 lbs. 9,200 lbs. 125 3 = 3/16" M = Deluxe increments
5 7,600 lbs. 14,400 lbs. 250 R = Ring 2.00 = 2 inch
6 11,200 lbs. 20,600 lbs. 500 D = Detent QUICK RELEASE PINS

Our "M" and "R" style pins offer a positive locking, single-acting push button pin. The "M" style has a recessed button for optimal
safety, eliminating any fouling and accidental release. The "R" style has a single acting button where minimal clearance is
required. The "D" style has an economical push/pull action where minimum tension loads are required, while still offering sub-
stantial shear loads.
FIG 8866

Type "D" "D" Type "M" "M" Type "R" "R" Grip
No. Each No. Each No. Each Diameter Length
Q3D100 $9.95 — — — — 3/16" 1"
Q3D125 11.75 — — Q3R125 $25.55 3/16" 1-1/4"
Q3D150 11.75 — — Q3R150 25.55 3/16" 1-1/2"
Q3D200 11.75 Q3M200 $37.00 Q3R200 25.55 3/16" 2"
Q4D075 11.95 Q4M075 32.00 — — 1/4" 3/4"
Q4D100 11.95 Q4M100 32.00 Q4R100 23.75 1/4" 1"
Q4D125 13.10 Q4M125 38.15 Q4R125 25.75 1/4" 1-1/4"
Q4D150 13.10 Q4M150 38.15 Q4R150 25.75 1/4" 1-1/2"
Q4D200 13.10 Q4M200 38.15 Q4R200 25.75 1/4" 2"
Q4D250 14.40 Q4M250 44.15 Q4R250 27.90 1/4" 2-1/2"
Q4D300 14.40 Q4M300 44.15 Q4R300 27.90 1/4" 3"
Q5D100 14.55 Q5M100 33.40 Q5R100 49.50 5/16" 1"
— — — — Q5R125 29.40 5/16" 1-1/4"
— — Q5M150 38.35 Q5R150 29.40 5/16" 1-1/2"
— — — — Q5R175 29.40 5/16" 1-3/4"
Q5D200 16.75 Q5M200 38.35 Q5R200 29.40 5/16" 2"
— — Q5M250 44.40 — — 5/16" 2-1/2"
— — Q6M150 39.75 Q6R150 34.20 3/8" 1-1/2"
Q6D200 16.80 — — Q6R200 34.20 3/8" 2"
— — — — Q6R250 35.10 3/8" 2-1/2"
— — — — Q6R300 35.10 3/8" 3"
