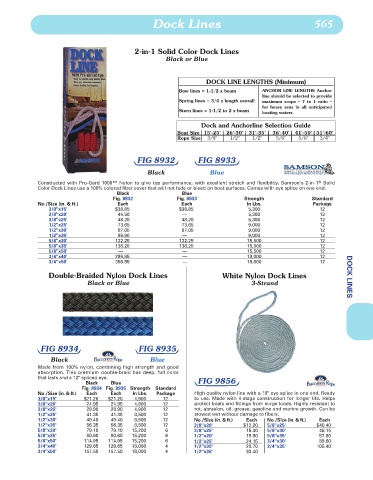

Page 566 - Lewis

Dock Lines 565

2-in-1 Solid Color Dock Lines
Black or Blue

DOCK LINE LENGTHS (Minimum)
Bow lines = 1-1/2 x beam ANCHOR LINE LENGTHS Anchor
line should be selected to provide
Spring lines = 3/4 x length overall maximum scope – 7 to 1 ratio –
for heavy seas in all anticipated
Stern lines = 1-1/2 to 2 x beam
boating waters.
Dock and Anchorline Selection Guide
Boat Size 15'-25' 26'-30' 31'-35' 36'-40' 41'-50' 51'-60'
Rope Size 3/8" 1/2" 1/2" 5/8" 5/8" 3/4"

FIG 8932 FIG 8933

Black Blue
Constructed with Pro-Gard 1000™ Nylon to give top performance, with excellent stretch and flexibility. Samson's 2-in-1 ® Solid
Color Dock Lines use a 100% colored fiber cover that will not fade or bleed on boat surfaces. Comes with eye splice on one end.
Black Blue
Fig. 8932 Fig. 8933 Strength Standard
No./Size (in. & ft.) Each Each In Lbs. Package
3/8"x15' $38.85 $38.85 5,300 12
3/8"x20' 44.50 — 5,300 12
3/8"x25' 48.20 48.20 5,300 12
1/2"x25' 73.65 73.65 9,000 12
1/2"x30' 87.05 87.05 9,000 12
1/2"x35' 96.90 — 9,000 12
5/8"x30' 122.25 122.25 15,500 12
5/8"x35' 138.20 138.20 15,500 12
5/8"x50' — — 15,500 12
3/4"x40' 295.85 — 18,000 12
3/4"x50' 356.95 — 18,000 12

Double-Braided Nylon Dock Lines White Nylon Dock Lines DOCK LINES
Black or Blue 3-Strand

FIG 8934 FIG 8935
Black Blue
Made from 100% nylon, combining high strength and good
absorption. This premium double-braid has deep, full color
that lasts and a 12" spliced eye.
Black Blue FIG 9856
Fig. 8934 Fig. 8935 Strength Standard
No./Size (in. & ft.) Each Each In Lbs. Package High quality nylon line with a 10" eye splice in one end. Ready
3/8"x15' $21.20 $21.20 4,900 12 to use. Made with 4-stage construction for longer life. Helps
3/8"x20' 24.95 24.95 4,900 12 protect boats and fittings from surge loads. Highly resistant to
3/8"x25' 28.90 28.90 4,900 12 rot, abrasion, oil, grease, gasoline and marine growth. Can be
1/2"x25' 41.35 41.35 8,500 12 stowed wet without damage to fibers.
1/2"x30' 49.40 49.40 8,500 12 No./Size (in. & ft.) Each No./Size (in. & ft.) Each
1/2"x35' 56.35 56.35 8,500 12 3/8"x20' $12.20 5/8"x25' $40.40
5/8"x30' 79.10 79.10 15,200 6 3/8"x25' 15.30 5/8"x30' 48.15
5/8"x35' 90.60 90.60 15,200 6 1/2"x20' 19.90 5/8"x35' 57.80
5/8"x50' 114.95 114.95 15,200 6 1/2"x25' 24.15 3/4"x30' 89.60
3/4"x40' 129.65 129.65 18,000 4 1/2"x30' 28.70 3/4"x35' 105.40
3/4"x50' 157.50 157.50 18,000 4 1/2"x35' 33.40
