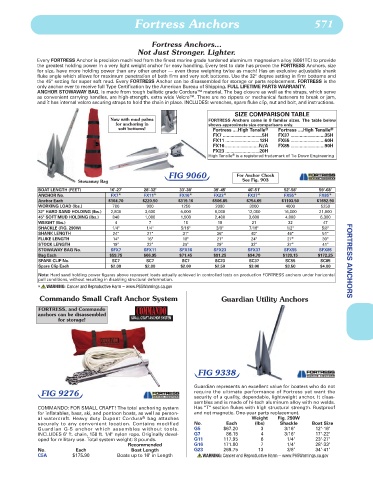

Page 572 - Lewis

Fortress Anchors 571

Fortress Anchors...
Not Just Stronger. Lighter.
Every FORTRESS Anchor is precision machined from the finest marine grade hardened aluminum magnesium alloy (6061TC) to provide
the greatest holding power in a very light weight anchor for easy handling. Every test to date has proven the FORTRESS Anchors, size
for size, have more holding power than any other anchor — even those weighing twice as much! Has an exclusive adjustable shank
fluke angle which allows for maximum penetration of both firm and very soft bottoms. Use the 32° degree setting in firm bottoms and
the 45° setting for super soft mud. Every FORTRESS Anchor can be disassembled for storage or parts replacement. FORTRESS is the
only anchor ever to receive full Type Certification by the American Bureau of Shipping. FULL LIFETIME PARTS WARRANTY.
ANCHOR STOWAWAY BAG, is made from tough ballistic grade Cordura™ material. The bag closure as well as the straps, which serve
as convenient carrying handles, are high-strength, extra wide Velcro™. There are no zippers or mechanical fasteners to break or jam,
and it has internal velcro securing straps to hold the chain in place. INCLUDES: wrenches, spare fluke clip, nut and bolt, and instructions.

SIZE COMPARISON TABLE
Now with mud palms FORTRESS Anchors come in 8 familar sizes. The table below
for anchoring in shows approximate size comparisons only.
soft bottoms! Fortress ....High Tensile ® Fortress ....High Tensile ®
FX7 ..............................5H FX37 ..........................35H
FX11 ..........................12H FX55 ..........................60H
FX16..........................N/A FX85 ..........................90H
FX23 ..........................20H
®
High Tensile is a registered trademark of Tie Down Engineering
FIG 9060 For Anchor Chock
Stowaway Bag See Fig. 903
BOAT LENGTH (FEET) 16'-27' 28'-32' 33'-38' 39'-45' 46'-51' 52'-58' 59'-68'
ANCHOR No. FX7* FX11* FX16* FX23* FX37* FX55* FX85*
Anchor Each $164.70 $220.50 $319.10 $506.85 $754.65 $1103.50 $1692.90
WORKING LOAD (lbs.) 700 900 1250 2000 3000 4000 5250
32° HARD SAND HOLDING (lbs.) 2,800 3,600 5,000 8,000 12,000 16,000 21,000
45° SOFT MUD HOLDING (lbs.) 840 1,080 1,500 2,400 3,600 4,800 6,300
WEIGHT (lbs.) 4 7 10 15 21 32 47
SHACKLE (FIG. 290W) 1/4" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8"
SHANK LENGTH 24" 27" 31" 36" 40" 46" 51"
FLUKE LENGTH 14" 16" 18" 21" 24" 27" 30"
STOCK LENGTH 19" 22" 25" 29" 32" 37" 41"
STOWAWAY BAG No. SFX7 SFX11 SFX16 SFX23 SFX37 SFX55 SFX85
Bag Each $59.75 $66.95 $71.45 $91.25 $94.70 $139.15 $172.25
SPARE CLIP No. SC7 SC7 SC7 SC23 SC37 SC55 SC85 FORTRESS ANCHORS
Spare Clip Each $2.00 $2.00 $2.00 $2.50 $3.00 $3.50 $4.00
Note: Hard sand holding power figures above represent loads actually achieved in controlled tests on production FORTRESS anchors under horizontal
pull conditions, without resulting in disabling structural deformation.
* WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Commando Small Craft Anchor System Guardian Utility Anchors

FORTRESS, and Commando
anchors can be disassembled
for storage! SMALL CRAFT ANCHOR SYSTEM

FIG 9338

Guardian represents an excellent value for boaters who do not
FIG 9276 require the ultimate performance of Fortress yet want the
security of a quality, dependable, lightweight anchor. It disas-
sembles and is made of hi-tech aluminum alloy with no welds.
COMMANDO: FOR SMALL CRAFT! The total anchoring system Has "T" section flukes with high structural strength. Rustproof
for inflatables, bass, ski, and pontoon boats, as well as person- and not magnetic. One-year parts replacement.
al watercraft. Heavy duty Dupont Cordura ® bag attaches Weight Fig. 290W
securely to any convenient location. Contains modified No. Each (lbs) Shackle Boat Size
Guardian G-5 anchor which assembles without tools. G5 $67.20 3 3/16" 12'-16'
INCLUDES 6' ft. chain, 150 ft. 1/4" nylon rope. Originally devel- G7 86.15 4 3/16" 17'-22'
oped for military use. Total system weight: 8 pounds. G11 117.95 6 1/4" 23'-27'
Recommended G16 171.80 7 1/4" 28'-33'
No. Each Boat Length G23 269.75 13 3/8" 34'-41'
C5A $175.90 Boats up to 16' in Length WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
