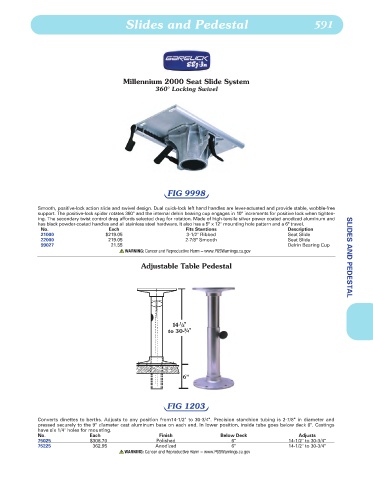

Page 592 - Lewis

Slides and Pedestal 591

Millennium 2000 Seat Slide System
360° Locking Swivel

FIG 9998

Smooth, positive-lock action slide and swivel design. Dual quick-lock left hand handles are lever-actuated and provide stable, wobble-free
support. The positive-lock spider rotates 360° and the internal delrin bearing cup engages in 10° increments for positive lock when tighten-
ing. The secondary twist control drag affords selected drag for rotation. Made of high-tensile silver power coated anodized aluminum and
has black powder-coated handles and all stainless steel hardware. It also has a 5" x 12" mounting hole pattern and a 6" travel.
No. Each Fits Stantions Description
21000 $219.05 3-1/2" Ribbed Seat Slide
22000 219.05 2-7/8" Smooth Seat Slide
99027 21.55 Delrin Bearing Cup
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov SLIDES AND PEDESTAL

Adjustable Table Pedestal

FIG 1203

Converts dinettes to berths. Adjusts to any position from14-1/2" to 30-3/4". Precision stanchion tubing is 2-7/8" in diameter and
pressed securely to the 9" diameter cast aluminum base on each end. In lower position, inside tube goes below deck 6". Castings
have six 1/4" holes for mounting.
No. Each Finish Below Deck Adjusts
75025 $308.70 Polished 6" 14-1/2" to 30-3/4"
75225 362.95 Anodized 6" 14-1/2" to 30-3/4"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
