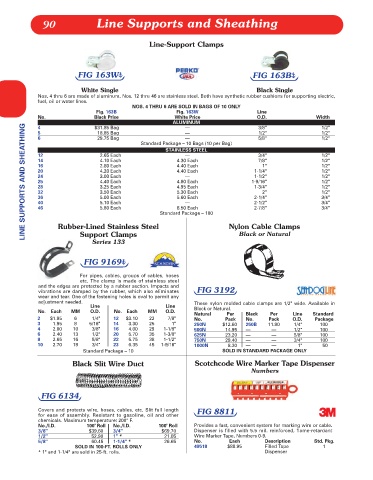

Page 91 - Lewis

90 Line Supports and Sheathing

Line-Support Clamps

FIG 163Wb FIG 163Bb

White Single Black Single
Nos. 4 thru 6 are made of aluminum. Nos. 12 thru 46 are stainless steel. Both have synthetic rubber cushions for supporting electric,
fuel, oil or water lines.
NOS. 4 THRU 6 ARE SOLD IN BAGS OF 10 ONLY
Fig. 163B Fig. 163W Line
No. Black Price White Price O.D. Width
ALUMINUM
LINE SUPPORTS AND SHEATHING
4 $31.85 Bag — 3/8" 1/2"
5 18.85 Bag — 1/2" 1/2"
6 29.75 Bag — 5/8" 1/2"
Standard Package – 10 Bags (10 per Bag)
STAINLESS STEEL
12 2.65 Each — 3/4" 1/2"
14 4.10 Each 4.30 Each 7/8" 1/2"
16 2.80 Each 4.40 Each 1" 1/2"
20 4.20 Each 4.40 Each 1-1/4" 1/2"
24 3.00 Each — 1-1/2" 1/2"
25 4.40 Each 4.80 Each 1-9/16" 1/2"
28 3.25 Each 4.95 Each 1-3/4" 1/2"
32 3.50 Each 5.30 Each 2" 1/2"
36 5.00 Each 5.60 Each 2-1/4" 3/4"
40 5.10 Each — 2-1/2" 3/4"
46 5.80 Each 6.50 Each 2-7/8" 3/4"
Standard Package – 100
Rubber-Lined Stainless Steel Nylon Cable Clamps
Support Clamps Black or Natural
Series 133

FIG 9169b

For pipes, cables, groups of cables, hoses
etc. The clamp is made of stainless steel
and the edges are protected by a rubber section. Impacts and
vibrations are damped by the rubber, which also eliminates FIG 3192
wear and tear. One of the fastening holes is oval to permit any
adjustment needed. These nylon molded cable clamps are 1/2" wide. Available in
Line Line Black or Natural.
No. Each MM O.D. No. Each MM O.D.
Natural Per Black Per Line Standard
2 $1.95 6 1/4" 12 $3.10 22 7/8" No. Pack No. Pack O.D. Package
3 1.95 8 5/16" 14 3.30 25 1" 250N $12.60 250B 11.90 1/4" 100
4 2.00 10 3/8" 16 4.00 29 1-1/8" 500N 14.95 — — 1/2" 100
6 2.40 13 1/2" 20 5.70 35 1-3/8" 625N 23.20 — — 5/8" 100
8 2.65 16 5/8" 22 5.75 38 1-1/2" 750N 29.40 — — 3/4" 100
10 2.70 19 3/4" 23 6.35 45 1-9/16" 1000N 8.30 — — 1" 50
Standard Package – 10 SOLD IN STANDARD PACKAGE ONLY
Black Slit Wire Duct Scotchcode Wire Marker Tape Dispenser
Numbers

FIG 6134

Covers and protects wire, hoses, cables, etc. Slit full length FIG 8811
for ease of assembly. Resistant to gasoline, oil and other
chemicals. Maximum temperature: 200° F.
No./I.D. 100' Roll No./I.D. 100' Roll Provides a fast, convenient system for marking wire or cable.
3/8" $39.60 3/4" $69.70 Dispenser is filled with 5.5 mil. reinforced, flame-retardant
1/2" 52.90 1" * 21.05 Wire Marker Tape, Numbers 0-9.
5/8" 60.45 1-1/4" * 26.65 No. Each Description Std. Pkg.
SOLD IN 100-FT. ROLLS ONLY 49518 $80.95 Filled Tape 1
* 1" and 1-1/4" are sold in 25-ft. rolls. Dispenser
