P. 329
www.lewmar.com

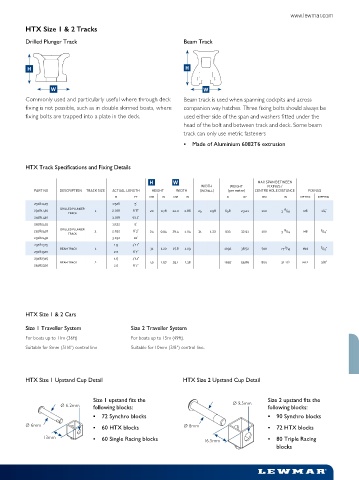

HTX Size 1 & 2 Tracks
Drilled Plunger Track Beam Track
H H
W W
Commonly used and particularly useful where through deck Beam track is used when spanning cockpits and across
fi xing is not possible, such as in double skinned boats, where companion way hatches. Three fi xing bolts should always be
fi xing bolts are trapped into a plate in the deck. used either side of the span and washers fi tted under the
head of the bolt and between track and deck. Some beam
track can only use metric fasteners
▪ Made of Aluminium 6082T6 extrusion
HTX Track Specifications and Fixing Details
H W MAX SPAN BETWEEN
WIDTH WEIGHT FIXINGS /
PART NO DESCRIPTION TRACK SIZE ACTUAL LENGTH HEIGHT WIDTH () (per metre) CENTRE HOLE DISTANCE FIXINGS
. '
. ' " . . . . . ¹⁵/₁₆ / "
. ' "
. '
. ' " . . . . . ¹⁵/₁₆ ⁵/₁₆"
. '
. ' "
. . . . ⁹/₁₆ ⁵/₁₆"
. '"
. ' "
. . . . / / "
. '"
HTX Size 1 & 2 Cars
Size 1 Traveller System Size 2 Traveller System
For boats up to 11m (36ft) For boats up to 15m (49ft).
Suitable for 8mm (5/16") control line Suitable for 10mm (3/8") control line.
HTX Size 1 Upstand Cup Detail HTX Size 2 Upstand Cup Detail
Size 1 upstand fits the Size 2 upstand fits the
Ø 6.2mm following blocks: Ø 9.5mm following blocks:
▪ 72 Synchro blocks ▪ 90 Synchro blocks
Ø 6mm ▪ 60 HTX blocks Ø 8mm ▪ 72 HTX blocks
13mm ▪ 60 Single Racing blocks 16.5mm ▪ 80 Triple Racing
blocks
328/329
