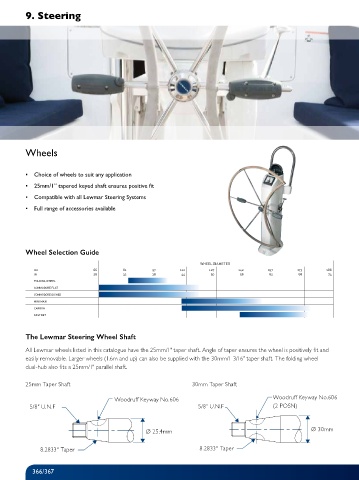

P. 366

9. Steering


























          Wheels



            ▪  Choice of wheels to suit any application

            ▪  25mm/1” tapered keyed shaft ensures positive fit
            ▪  Compatible with all Lewmar Steering Systems
            ▪  Full range of accessories available







          Wheel Selection Guide

                                                                   WHEEL DIAMETER
            
            
             
             
             
             
            
            


          The Lewmar Steering Wheel Shaft
          All Lewmar wheels listed in this catalogue have the 25mm/1" taper shaft. Angle of taper ensures the wheel is positively fi t and
          easily removable. Larger wheels (1.6m and up) can also be supplied with the 30mm/1 3/16" taper shaft. The folding wheel
          dual-hub also fi ts a 25mm/1" parallel shaft.

          25mm Taper Shaft                                       30mm Taper Shaft


                                       Woodruff Keyway No.606                               Woodruff Keyway No.606
           5/8" U.N.F                                              5/8" U.N.F               (2 POSN)



                                                 Ø 25.4mm                                               Ø 30mm


              8.2833° Taper                                        8.2833° Taper
