1. Windlasses

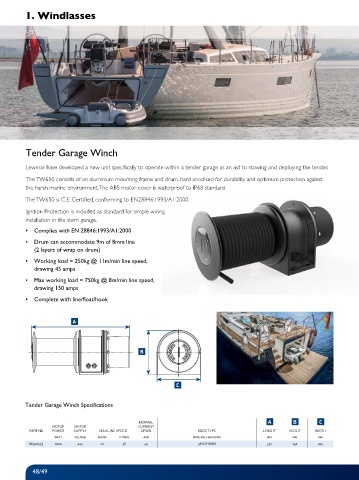

          Tender Garage Winch


          Lewmar have developed a new unit specifi cally to operate within a tender garage as an aid to stowing and deploying the tender.
          The TW650 consists of an aluminium mounting frame and drum, hard anodised for durability and optimum protection against
          the harsh marine environment. The ABS motor cover is waterproof to IP68 standard.
          The TW650 is C.E. Certifi ed, conforming to EN28846:1993/A1:2000

          Ignition Protection is included as standard for simple wiring
          installation in the stern garage.

            ▪  Complies with EN 28846:1993/A1:2000
            ▪  Drum can accommodate 9m of 8mm line
            (2 layers of wrap on drum)
            ▪  Working load = 250kg @ 11m/min line speed,
            drawing 45 amps
            ▪  Max working load = 750kg @ 8m/min line speed,
            drawing 150 amps
            ▪  Complete with line/float/hook



                         A




                                               B





                                                           C


         Tender Garage Winch Specifications


                                               NORMAL                                     A       B        C
                  MOTOR   MOTOR                CURRENT
           PART NO  POWER  SUPPLY  MAX LINE SPEED  DRAW            RODE TYPE            LENGHT   HEIGHT  WIDTH
                        /  /                                     
                                                                   M OF  MM
