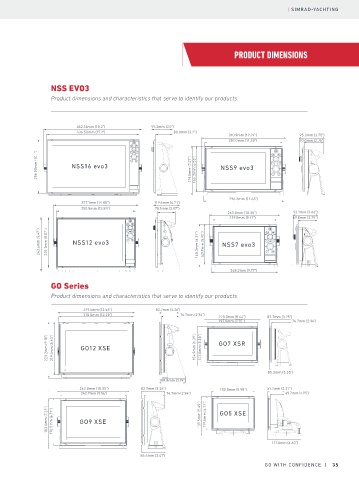

PRODUCT DIMENSIONS

NSS EVO3
Product dimensions and characteristics that serve to identify our products.

462.14mm (18.2") 99.3mm (3.9")
436.50mm (17.2") 80.0mm (3.2")
310.9mm (12.24") 95.3mm (3.75")
287.0mm (11.30") 70.0mm (2.76")
256.00mm (10.1") NSS16 evo3 179.5mm (7.07") 166.3mm (6.55") NSS9 evo3

296.3mm (11.66")
377.1mm (14.85") 119.6mm (4.71")
351.5mm (13.84") 78.1mm (3.07")
263.0mm (10.35") 93.1mm (3.66")
239.0mm (9.41") 69.8mm (2.75")

240.6mm (9.47") 225.3mm (8.87") NSS12 evo3 160.3mm (6.31") 149.9mm (5.90") NSS7 evo3

248.2mm (9.77")

GO Series
Product dimensions and characteristics that serve to identify our products.

319.5mm (12.58") 82.7mm (3.26")
310.0mm (12.20") 74.7mm (2.94")
220.0mm (8.66") 82.7mm (3.25")
197.0mm (7.75") 74.7mm (2.94")

223.2mm (9.18") 219.1mm (8.63") GO12 XSE 154.9mm (6.09") 141.0mm (5.55") GO7 XSR

85.3mm (3.35")
108.8mm (3.74")
263.0mm (10.35") 82.7mm (3.26") 152.0mm (5.98") 57.7mm (2.27")
242.7mm (9.56") 74.7mm (2.94") 49.7mm (1.95")

183.6mm (7.23") 170.5mm (6.71") GO9 XSE 139.5mm (5.49") 119.8mm (4.71") GO5 XSE

117.8mm (4.63")
86.6mm (3.41")
