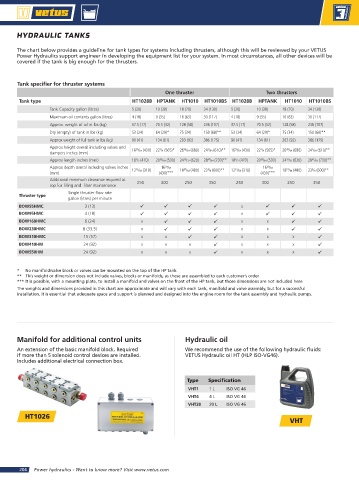

P. 204
HYDRAULIC TANKS
The chart below provides a guideline for tank types for systems including thrusters, although this will be reviewed by your VETUS
Power Hydraulics support engineer in developing the equipment list for your system. In most circumstances, all other devices will be
covered if the tank is big enough for the thrusters.
Tank specifier for thruster systems
One thruster Two thrusters
Tank type HT1028B HPTANK HT1010 HT1010BS HT1028B HPTANK HT1010 HT1010BS
Tank Capacity gallon (litres) 5 (20) 10 (38) 18 (70) 34 (130) 5 (20) 10 (38) 18 (70) 34 (130)
Maximum oil contents gallon (litres) 4 (18) 9 (35) 16 (63) 30 (117) 4 (18) 9 (35) 16 (63) 30 (117)
Approx. weight of oil in lbs (kg) 37.5 (17) 70.5 (32) 128 (58) 236 (107) 37.5 (17) 70.5 (32) 128 (58) 236 (107)
Dry (empty) of tank in lbs (kg) 53 (24) 64 (29)* 75 (34) 150 (68)** 53 (24) 64 (29)* 75 (34) 150 (68)**
Approx weight of full tank in lbs (kg) 90 (41) 134 (61) 203 (92) 386 (175) 90 (41) 134 (61) 203 (92) 386 (175)
Approx height overall including valves and 59 1 49 1 59 1 49 1
dampers inches (mm) 16 /64 (430) 22 /4 (565)* 26 /64 (680) 24 /64 (610)** 16 /64 (430) 22 /4 (565)* 26 /64 (680) 24 /64 (610)**
1
Approx length inches (mm) 18 /2 (470) 20 /64 (530) 24 /32 (620) 28 /64 (730)** 18 /2 (470) 20 /64 (530) 24 /32 (620) 28 /64 (730)**
55
55
13
47
13
47
1
59
Approx depth overal including valves inches 13 16 /64 57 5 13 16 /64 57 5
59
(mm) 12 /64 (310) (430)*** 18 /64 (480) 23 /8 (600)** 12 /64 (310) (430)*** 18 /64 (480) 23 /8 (600)**
Additional minimum clearance required at 250 300 250 350 250 300 250 350
top for filling and filter maintenance
Single thruster flow rate
Thruster type
gallon (litres) per minute
BOW55HMC 3 (13) x
BOW95HMC 4 (18) x
BOW160HMC 6 (24) x x x
BOW230HMC 8 (33,5) x x x
BOW310HMC 15 (57) x x x x x
BOW410HM 24 (92) x x x x x x
BOW550HM 24 (92) x x x x x x
* No manifold/valve block or valves can be mounted on the top of the HP tank
** This weight or dimension does not include valves, blocks or manifolds, as these are assembled to each customer’s order
*** It is possible, with a mounting plate, to install a manifold and valves on the front of the HP tank, but those dimensions are not included here
The weights and dimensions provided in this chart are approximate and will vary with each tank, manifold and valve assembly, but for a successful
installation, it is essential that adequate space and support is planned and designed into the engine room for the tank assembly and hydraulic pumps.
Manifold for additional control units Hydraulic oil
An extension of the basic manifold block. Required We recommend the use of the following hydraulic fluids:
if more than 5 solenoid control devices are installed. VETUS Hydraulic oil HT (HLP ISO-VG46).
Includes additional electrical connection box.
Type Specification
VHT1 1 L ISO VG 46
VHT4 4 L ISO VG 46
VHT20 20 L ISO VG 46
HT1026
VHT
