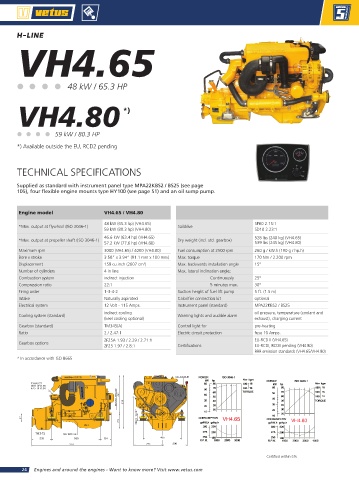

Page 24 - Vetus

H-LINE
VH4.65

48 kW / 65.3 HP

VH4.80 *)

59 kW / 80.3 HP

*) Available outside the EU, RCD2 pending

TECHNICAL SPECIFICATIONS

Supplied as standard with instrument panel type MPA22KBS2 / BS25 (see page
105), four flexible engine mounts type HY100 (see page 51) and an oil sump pump.

Engine model VH4.65 / VH4.80

48 kW (65.3 hp) (VH4.65) SP60 2.15:1
*Max. output at flywheel (ISO 3046-1) Saildrive
59 kW (80.3 hp) (VH4.80) SD10 2.23:1
46.6 kW (63.4 hp) (VH4.65) 528 lbs (240 kg) (VH4.65)
*Max. output at propeller shaft (ISO 3046-1) Dry weight (incl. std. gearbox)
57.2 kW (77.6 hp) (VH4.80) 539 lbs (245 kg) (VH4.80)
Maximum rpm 3000 (VH4.65) / 4000 (VH4.80) Fuel consumption at 2500 rpm 260 g / kW.h (190 g / hp.h)
Bore x stroke 3.58” x 3.94” (91.1 mm x 100 mm) Max. torque 170 Nm / 2.200 rpm
Displacement 159 cu.inch (2607 cm ) 3 Max. backwards installation angle 15°
Number of cylinders 4 in line Max. lateral inclination angle;
Combustion system indirect injection Continuously 25°
Compression ratio 22:1 5 minutes max. 30°
Firing order 1-3-4-2 Suction height of fuel lift pump 5 ft. (1.5 m)
Intake Naturally aspirated Calorifier connection kit optional
Electrical system 12 Volt - 115 Amps. Instrument panel (standard) MPA22KBS2 / BS25
indirect cooling oil pressure, temperature (coolant and
Cooling system (standard) Warning lights and audible alarm
(keel cooling optional) exhaust), charging current
Gearbox (standard) TM345(A) Control light for pre-heating
Ratio 2 / 2.47:1 Electric circuit protection fuse 10 Amps.
ZF25A 1.93 / 2.29 / 2.71:1 EU-RCD II (VH4.65)
Gearbox options
ZF25 1.97 / 2.8:1 Certifications EU-RCDI, RCDII pending (VH4.80)
RRR emission standards (VH4.65/VH4.80)
* In accordance with ISO 8665

VH4.80

Certified within 5%
