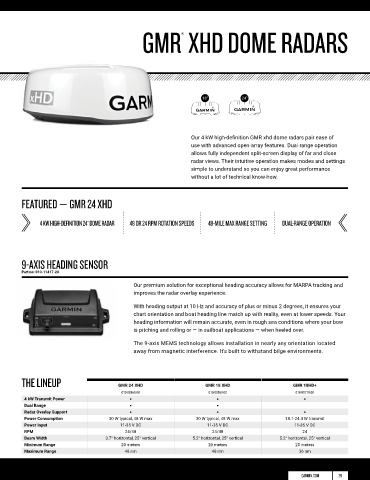

GMR XHD2 RADARS GMR XHD DOME RADARS
®
™

4' 6' 18" 24"

GMR xHD2 open-array radars are designed for serious Our 4 kW high-definition GMR xhd dome radars pair ease of
seafarers of larger yachts and sport fishing boats. Designed use with advanced open-array features. Dual-range operation
for easy installation and use, there are no complex user allows fully independent split-screen display of far and close
settings to fuss with. Just install it and start using. GMR xHD2 radar views. Their intuitive operation makes modes and settings
radars provide reliable, optimum performance in all conditions. simple to understand so you can enjoy great performance
without a lot of technical know-how.

FEATURED — GMR 2526 XHD2 FEATURED — GMR 24 XHD

POWER TO DELIVER EXCELLENT PULSE EXPANSION AUTO BIRD GAIN HELPS LOCATE OVERLAY RADAR ONTO CHART SCREEN
TARGET SEPARATION AND MAXIMIZES ENERGY FLOCKS OF BIRDS AND HELPS SIGNAL AS A SINGLE DISPLAY OR SPLIT SCREEN 4 KW HIGH-DEFINITION 24˝ DOME RADAR 48 OR 24 RPM ROTATION SPEEDS 48-MILE MAX RANGE SETTING DUAL-RANGE OPERATION
AMAZING IMAGE CLARITY ON TARGET THE LOCATION OF BIG GAME FISH WITH INDEPENDENT RANGE SETTINGS

PULSE EXPANSION ECHO TRAILS DUAL RANGE WITH OVERLAY AUTO BIRD GAIN 9-AXIS HEADING SENSOR

Part no: 010-11417-20
Our premium solution for exceptional heading accuracy allows for MARPA tracking and
improves the radar overlay experience.
With heading output at 10 Hz and accuracy of plus or minus 2 degrees, it ensures your
chart orientation and boat heading line match up with reality, even at lower speeds. Your
Pulse Expansion maximizes energy on Echo Trails leave a historical “trail” on Dual-range overlays show close and Auto Bird Gain helps locate flocks of
targets to provide a larger target size the screen to help you quickly identify long-range, split-screen images at the birds at the water’s surface where heading information will remain accurate, even in rough sea conditions where your bow
on the chartplotter. moving targets. same time. baitfish are also likely to be found. is pitching and rolling or — in sailboat applications — when heeled over.

THE LINEUP GMR 424 XHD2 GMR 1224 XHD2 GMR 1226 XHD2 GMR 2526 XHD2 The 9-axis MEMS technology allows installation in nearly any orientation located

K10-00012-08 K10-00012-11 K10-00012-12 K10-00012-16 away from magnetic interference. It's built to withstand bilge environments.
4’ Open Array with Pedestal • •
6’ Open Array with Pedestal • •
Wattage 4 kW 12 kW 12 kW 25 kW
Dynamic Auto Gain and Sea Filter Settings • • • • THE LINEUP
Target Size Adjustment • • • • GMR 24 XHD GMR 18 XHD GMR 18HD+
MARPA Target Tracking • • • • 010-00960-00 010-00959-00 010-01719-00
Dual Radar Support • • • • 4 kW Transmit Power • • •
Guard Zone • • • • Dual Range • •
Dual Range • • • • Radar Overlay Support • • •
Power Consumption 65 W typical 90 W typical 90 W typical 100 W typical Power Consumption 30 W typical, 48 W max 30 W typical, 48 W max 18.1-24.4 W transmit
RPM 24/48 24/48 24/48 24/48 Power Input 11-35 V DC 11-35 V DC 11-35 V DC
24/48
24
RPM
24/48
Beam Width 1.8° horizontal, 1.8° horizontal, 1.1° horizontal, 1.1° horizontal,
23° vertical 23° vertical 23° vertical 23° vertical Beam Width 3.7° horizontal, 25° vertical 5.2° horizontal, 25° vertical 5.2° horizontal, 25° vertical
Minimum Range 20 meters 20 meters 20 meters 20 meters Minimum Range 20 meters 20 meters 20 meters
Maximum Range 72 nm 72 nm 72 nm 96 nm Maximum Range 48 nm 48 nm 36 nm
1 Requires heading sensor; sold separately
