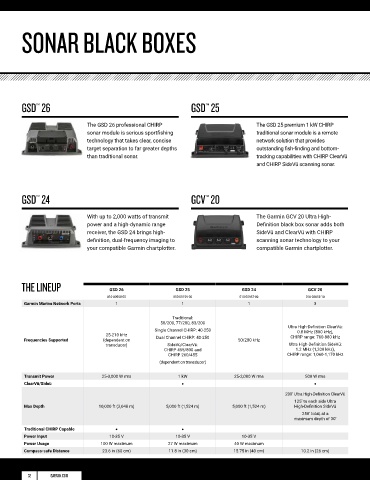

SONAR BLACK BOXES

GSD 26 GSD 25
™
™
The GSD 26 professional CHIRP The GSD 25 premium 1 kW CHIRP
sonar module is serious sportfishing traditional sonar module is a remote
technology that takes clear, concise network solution that provides
target separation to far greater depths outstanding fish-finding and bottom-
than traditional sonar. tracking capabilities with CHIRP ClearVü
and CHIRP SideVü scanning sonar.

GSD 24 GCV 20
™
™
With up to 2,000 watts of transmit The Garmin GCV 20 Ultra High-
power and a high-dynamic range Definition black box sonar adds both
receiver, the GSD 24 brings high- SideVü and ClearVü with CHIRP
definition, dual-frequency imaging to scanning sonar technology to your
your compatible Garmin chartplotter. compatible Garmin chartplotter.

THE LINEUP GSD 26 GSD 25 GSD 24 GCV 20

010-00958-00 010-01159-00 010-00957-00 010-02055-10
Garmin Marine Network Ports 1 1 1 3

Traditional:
50/200, 77/200, 83/200
Single Channel CHIRP: 40-250 Ultra High-Definition ClearVü:
0.8 MHz (800 kHz),
25-210 kHz CHIRP range: 760-880 kHz
Frequencies Supported (dependent on Dual Channel CHIRP: 40-250 50/200 kHz
transducer) SideVü/ClearVü: Ultra High-Definition SideVü:
CHIRP 455/800 and 1.2 MHz (1,200 kHz),
CHIRP 260/455 CHIRP range: 1,060-1,170 kHz
(dependent on transducer)
Transmit Power 25-3,000 W rms 1 kW 25-2,000 W rms 500 W rms
ClearVü/Sideü • •

200’ Ultra High-Definition ClearVü
125’ to each side Ultra
Max Depth 10,000 ft (3,048 m) 5,000 ft (1,524 m) 5,000 ft (1,524 m) High-Definition SideVü
250’ total, at a
maximum depth of 30’
Traditional CHIRP Capable • •
Power Input 10-35 V 10-35 V 10-35 V
Power Usage 100 W maximum 27 W maximum 40 W maximum
Compass-safe Distance 23.6 in (60 cm) 11.8 in (30 cm) 15.75 in (40 cm) 10.2 in (26 cm)
