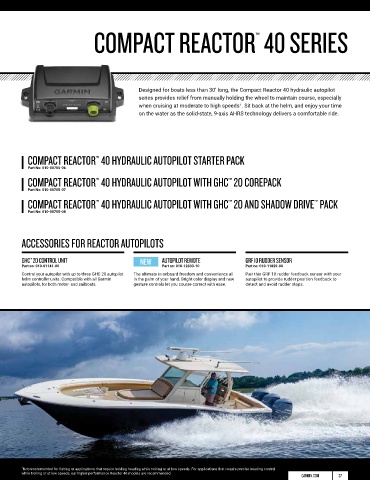

REACTOR 40 SERIES COMPACT REACTOR 40 SERIES
™
™

Our most responsive autopilot system on the water. With a complete package designed Designed for boats less than 30’ long, the Compact Reactor 40 hydraulic autopilot
for powerboats and sailboats, Garmin brings an advanced marine technology to the series provides relief from manually holding the wheel to maintain course, especially
boating public that was once only available for commercial boats. The Reactor 40 autopilot when cruising at moderate to high speeds¹. Sit back at the helm, and enjoy your time
series is simply the most responsive autopilot system we have ever offered. Reactor on the water as the solid-state, 9-axis AHRS technology delivers a comfortable ride.
40 autopilots are very versatile. Both powerboat and sailing features are available in all
corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick
the autopilot that’s compatible with your existing steering system.

COMPACT REACTOR 40 HYDRAULIC AUTOPILOT STARTER PACK
™
Part No: 010-00705-06
REACTOR 40 REACTOR 40 COMPACT REACTOR 40 HYDRAULIC AUTOPILOT WITH GHC 20 COREPACK
™
™
™
™
HYDRAULIC COREPACK WITH SMARTPUMP STEER-BY-WIRE STANDARD COREPACK Part No: 010-00705-07
COMPACT REACTOR 40 HYDRAULIC AUTOPILOT WITH GHC 20 AND SHADOW DRIVE PACK
™
™
™
One SmartPump fits most hydraulically steered boating applications. Fits vessels with steer-by-wire control systems, including Part No: 010-00705-08
YANMAR JC10 Joystick, Teleflex Optimus™, ZF 2800,
®
®
®
Reactor™ 40 Hydraulic Corepack with SmartPump With GHC™ 20
®
®
Part no: 010-00705-69 Yamaha Helm Master™ and Volvo Penta .
Reactor™ 40 Hydraulic Corepack with SmartPump Without GHC™ 20 Reactor™ 40 Steer-by-wire Standard Corepack with GHC™ 20
Part no: 010-00705-68 Part no: 010-00705-86 ACCESSORIES FOR REACTOR AUTOPILOTS
Reactor™ 40 Steer-by-wire Standard Corepack Without GHC™ 20
Part no: 010-00705-90
GHC 20 CONTROL UNIT NEW AUTOPILOT REMOTE GRF 10 RUDDER SENSOR
™
®
Reactor™ 40 Steer-by-wire Corepack for Yamaha Helm Master™ with GHC™ 20 Part no: 010-01141-00 Part no: 010-12833-10 Part no: 010-11829-00
REACTOR 40 HYDRAULIC AUTOPILOT Part no: 010-00705-87 Control your autopilot with up to three GHC 20 autopilot The ultimate in onboard freedom and convenience all Pair this GRF 10 rudder feedback sensor with your
™
®
Reactor™ 40 Steer-by-wire Corepack for Yamaha Helm Master™ Without GHC™ 20 helm controller units. Compatible with all Garmin in the palm of your hand. Bright color display and new autopilot to provide rudder position feedback to
Part no: 010-00705-91 autopilots, for both motor- and sailboats. gesture controls let you course-correct with ease. detect and avoid rudder stops.
Ideal for all types of hydraulically steered powerboats – Reactor™ 40 Steer-by-wire Corepack for Viking VIPER™ with GHC™ 20
®
inboards, outboards and stern drives. Part no: 010-00705-88
®
Reactor™ 40 Steer-by-wire Corepack for Viking VIPER™ Without GHC™ 20
Reactor™ 40 Hydraulic Autopilot with GHC™ 20 Part no: 010-00705-92
Part no: 010-00705-19
®
Reactor™ 40 Steer-by-wire Corepack for Volvo Penta with GHC™ 20
Reactor™ 40 Hydraulic Autopilot Without GHC™ 20 Part no: 010-00705-89
Part no: 010-00705-21
®
Reactor™ 40 Steer-by-wire Corepack for Volvo Penta Without GHC™ 20
Part no:010-00705-93
REACTOR 40
™
MECHANICAL/RETROFIT/SOLENOID COREPACK
Ideal for sailboats with direct or cable-actuated steering systems.
Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack with GHC™ 20
Part no: 010-00705-49
Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack Without GHC™ 20
Part no: 010-00705-48

1 Not recommended for fishing or applications that require holding heading while trolling or at low speeds. For applications that require precise heading control
36 GARMIN.COM while trolling or at low speeds, our higher-performance Reactor 40 models are recommended. GARMIN.COM 37
