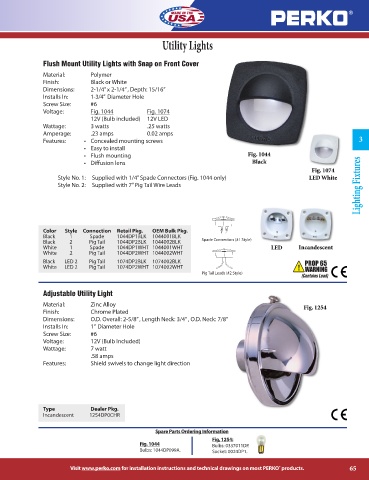

Page 65 - Perko
P. 65

Utility Lights


               Flush Mount Utility Lights with Snap on Front Cover

               Material:                   Polymer
               Finish:                        Black or White
               Dimensions:            2-1/4” x 2-1/4” , Depth: 15/16”
               Installs In:                 1-3/4”  Diameter Hole
               Screw Size:               #6
               Voltage:                    Fig. 1044  Fig. 1074
                                                   12V (Bulb included)  12V LED
               Wattage:                   3 watts  .25 watts
               Amperage:               .23 amps  0.02 amps
               Features:              •    Concealed mounting screws                                                  3
                                              •    Easy to install
                                              •    Flush mounting                 Fig. 1044
                                                                                                                       Lighting Fixtures
                                              •    Diffusion lens                  Black
                                                                                                       Fig. 1074
                          Style No. 1:     Supplied with 1/4” Spade Connectors (Fig. 1044 only)       LED White
                          Style No. 2:     Supplied with 7” Pig Tail Wire Leads








               Color       Style     Connection  Retail Pkg.   OEM Bulk Pkg.
               Black            1               Spade  1044DP1BLK  1044001BLK
               Black            2              Pig Tail  1044DP2BLK  1044002BLK  Spade Connectors (#1 Style)
               White           1               Spade  1044DP1WHT 1044001WHT               LED      Incandescent
               White           2              Pig Tail  1044DP2WHT 1044002WHT
               Black        LED 2          Pig Tail  1074DP2BLK  1074002BLK
               White       LED 2          Pig Tail  1074DP2WHT 1074002WHT
                                                                   Pig Tail Leads (#2 Style)


               Adjustable Utility Light

               Material:                   Zinc Alloy
                                                                                                    Fig. 1254
               Finish:                        Chrome Plated
               Dimensions:            O.D. Overall: 2-5/8” , Length Neck: 3/4” , O.D. Neck: 7/8”
               Installs In:                 1”  Diameter Hole
               Screw Size:               #6
               Voltage:                    12V (Bulb Included)
               Wattage:                   7 watt
                                                   .58 amps
               Features:                   Shield swivels to change light direction







               Type                                Dealer Pkg.
               Incandescent             1254DP0CHR


                                                    Spare Parts Ordering Information
                                                                      Fig, 1254:
                                               Fig. 1044              Bulbs: 0337011DP.
                                               Bulbs: 1044DP099A.     Socket: 0024DP1.


                        Visit www.perko.com for installation instructions and technical drawings on most PERKO products.  65
                                                                                            ®
