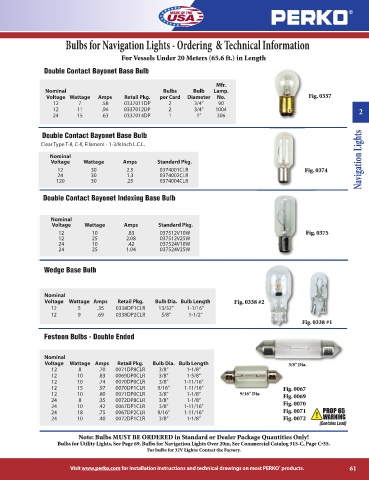

Page 61 - Perko

Bulbs for Navigation Lights - Ordering & Technical Information

For Vessels Under 20 Meters (65.6 ft.) in Length

Double Contact Bayonet Base Bulb

Mfr.
Nominal Bulbs Bulb Lamp.
Voltage Wattage Amps Retail Pkg. per Card Diameter No. Fig. 0337
12 7 .58 0337011DP 2 3/4” 90
12 11 .94 0337012DP 2 3/4” 1004 2
24 15 .63 0337014DP 1 1” 306

Double Contact Bayonet Base Bulb
Clear Type T-8, C-8, Filament - 1-3/8 Inch L.C.L.
Nominal
Voltage Wattage Amps Standard Pkg. Navigation Lights
12 30 2.5 0374001CLR Fig. 0374
24 30 1.3 0374002CLR
120 30 .25 0374004CLR

Double Contact Bayonet Indexing Base Bulb

Nominal
Voltage Wattage Amps Standard Pkg.
12 10 .83 037512V10W Fig. 0375
12 25 2.08 037512V25W
24 10 .42 037524V10W
24 25 1.04 037524V25W

Wedge Base Bulb

Nominal
Voltage Wattage Amps Retail Pkg. Bulb Dia. Bulb Length Fig. 0338 #2
12 5 .35 0338DP1CLR 13/32” 1-1/16”
12 9 .69 0338DP2CLR 5/8” 1-1/2”
Fig. 0338 #1

Festoon Bulbs - Double Ended

Nominal
Voltage Wattage Amps Retail Pkg. Bulb Dia. Bulb Length 3/8” Dia.
12 8 .70 0071DP8CLR 3/8” 1-1/8”
12 10 .83 0069DP0CLR 3/8” 1-5/8”
12 10 .74 0070DP0CLR 3/8” 1-11/16”
12 15 .97 0070DP1CLR 9/16” 1-11/16” Fig. 0067
12 10 .80 0071DP0CLR 3/8” 1-1/8” 9/16” Dia. Fig. 0069
24 8 .35 0072DP8CLR 3/8” 1-1/8” Fig. 0070
24 10 .42 0067DP1CLR 3/8” 1-11/16”
24 18 .75 0067DP2CLR 9/16” 1-11/16” Fig. 0071
24 10 .40 0072DP1CLR 3/8” 1-1/8” Fig. 0072

Note: Bulbs MUST BE ORDERED in Standard or Dealer Package Quantities Only!
Bulbs for Utility Lights, See Page 69. Bulbs for Navigation Lights Over 20m, See Commercial Catalog 315-C, Page C•35.
For bulbs for 32V Lights: Contact the Factory.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 61
®
