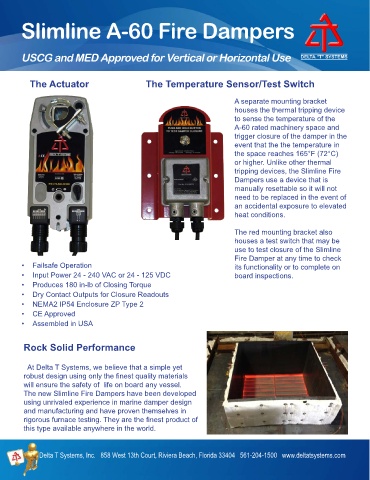

Slimline A-60 Fire Dampers

USCG and MED Approved for Vertical or Horizontal Use

The Actuator The Temperature Sensor/Test Switch

A separate mounting bracket
houses the thermal tripping device
to sense the temperature of the
A-60 rated machinery space and
trigger closure of the damper in the
event that the the temperature in
the space reaches 165°F (72°C)
or higher. Unlike other thermal
tripping devices, the Slimline Fire
Dampers use a device that is
manually resettable so it will not
need to be replaced in the event of
an accidental exposure to elevated
heat conditions.

The red mounting bracket also
houses a test switch that may be
use to test closure of the Slimline
Fire Damper at any time to check
• Failsafe Operation its functionality or to complete on
• Input Power 24 - 240 VAC or 24 - 125 VDC board inspections.
• Produces 180 in-lb of Closing Torque
• Dry Contact Outputs for Closure Readouts
• NEMA2 IP54 Enclosure ZP Type 2
• CE Approved
• Assembled in USA

Rock Solid Performance

At Delta T Systems, we believe that a simple yet
robust design using only the finest quality materials
will ensure the safety of life on board any vessel.
The new Slimline Fire Dampers have been developed
using unrivaled experience in marine damper design
and manufacturing and have proven themselves in
rigorous furnace testing. They are the finest product of
this type available anywhere in the world.
