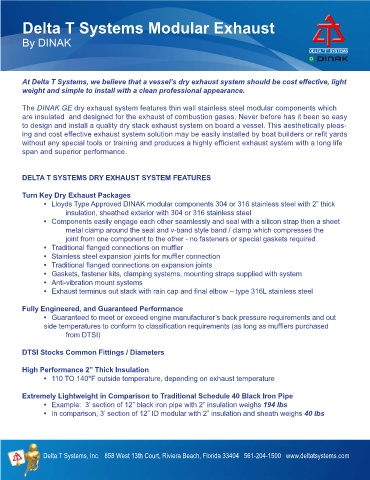

Delta T Systems Modular Exhaust

By DINAK

At Delta T Systems, we believe that a vessel’s dry exhaust system should be cost effective, light
weight and simple to install with a clean professional appearance.

The DINAK GE dry exhaust system features thin wall stainless steel modular components which
are insulated and designed for the exhaust of combustion gases. Never before has it been so easy
to design and install a quality dry stack exhaust system on board a vessel. This aesthetically pleas-
ing and cost effective exhaust system solution may be easily installed by boat builders or refit yards
without any special tools or training and produces a highly efficient exhaust system with a long life
span and superior performance.

DELTA T SYSTEMS DRY EXHAUST SYSTEM FEATURES

Turn Key Dry Exhaust Packages

• Lloyds Type Approved DINAK modular components 304 or 316 stainless steel with 2” thick
insulation, sheathed exterior with 304 or 316 stainless steel
• Components easily engage each other seamlessly and seal with a silicon strap then a sheet
metal clamp around the seal and v-band style band / clamp which compresses the
joint from one component to the other - no fasteners or special gaskets required
• Traditional flanged connections on muffler
• Stainless steel expansion joints for muffler connection
• Traditional flanged connections on expansion joints
• Gaskets, fastener kits, clamping systems, mounting straps supplied with system
• Anti-vibration mount systems
• Exhaust terminus out stack with rain cap and final elbow – type 316L stainless steel

Fully Engineered, and Guaranteed Performance
• Guaranteed to meet or exceed engine manufacturer’s back pressure requirements and out
side temperatures to conform to classification requirements (as long as mufflers purchased
from DTSI)

DTSI Stocks Common Fittings / Diameters

High Performance 2” Thick Insulation
• 110 TO 140°F outside temperature, depending on exhaust temperature

Extremely Lightweight in Comparison to Traditional Schedule 40 Black Iron Pipe
• Example: 3’ section of 12” black iron pipe with 2” insulation weighs 194 lbs
• In comparison, 3’ section of 12” ID modular with 2” insulation and sheath weighs 40 lbs

Delta T Systems, Inc. 858 West 13th Court, Riviera Beach, Florida 33404 561-204-1500 www.deltatsystems.com
