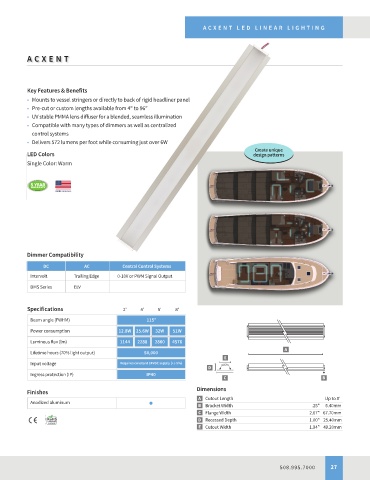

Page 27 - Imtra_lighting

A C XENT LED LINEAR LIGHTING

A C XENT

Key Features & Benefits
• Mounts to vessel stringers or directly to back of rigid headliner panel
• Pre-cut or custom lengths available from 4" to 96"
• UV stable PMMA lens diffuser for a blended, seamless illumination
• Compatible with many types of dimmers as well as centralized
control systems
• Delivers 572 lumens per foot while consuming just over 6W
Create unique
LED Colors design patterns
Single Color: Warm

MADE IN U.S.A.

Dimmer Compatibility
DC AC Central Control Systems
Intervolt Trailing Edge 0-10V or PWM Signal Output

DMS Series ELV

Specifications 2' 4' 5' 8'
Beam angle (FWHM) 115 O

Power consumption 12.8W 25.6W 32W 51W
Luminous flux (lm) 1144 2288 2860 4576
A
Lifetime hours (70% light output) 50,000
E
Input voltage Requires constant 24VDC supply (+/-5%)
D
Ingress protection (IP) IP40
C B
Dimensions
Finishes
• A Cutout Length Up to 8'
Anodized aluminum B Bracket Width .25" 6.40mm
C Flange Width 2.67" 67.70mm
D Recessed Depth 1.00" 25.40mm
E Cutout Width 1.94" 49.20mm
