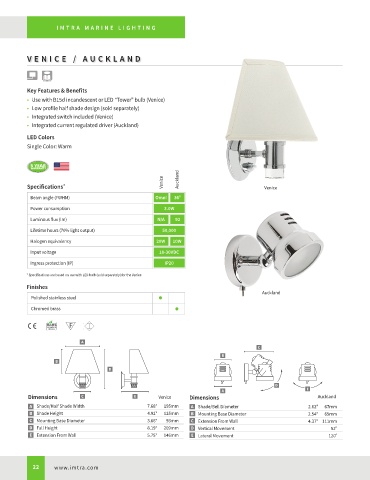

IMTR A MARINE LIGHTING
VENICE / A UCKLAND
Key Features & Benefits
• Use with B15d incandescent or LED “Tower” bulb (Venice)
• Low profile half shade design (sold separately)
• Integrated switch included (Venice)
• Integrated current regulated driver (Auckland)
LED Colors
Single Color: Warm
Venice Auckland
Specifications* Venice
Beam angle (FWHM) Omni 36 O
Power consumption 3.0W
Luminous flux (lm) N/A 92
Lifetime hours (70% light output) 50,000
Halogen equivalency 20W 10W
Input voltage 10-30VDC
Ingress protection (IP) IP20
* Specifications are based on use with LED bulb (sold separately) for the Venice
Finishes
• Auckland
Polished stainless steel
•
Chromed brass
A
C
B
B
D
D
A E
Dimensions C E Venice Dimensions Auckland
A Shade/Half Shade Width 7.68" 195mm A Shade/Bell Diameter 2.62" 67mm
B Shade Height 4.92" 125mm B Mounting Base Diameter 2.54" 65mm
C Mounting Base Diameter 3.66" 93mm C Extension From Wall 4.37" 111mm
D Full Height 8.19" 209mm D Vertical Movement 52 o
E Extension From Wall 5.75" 146mm E Lateral Movement 120 o
