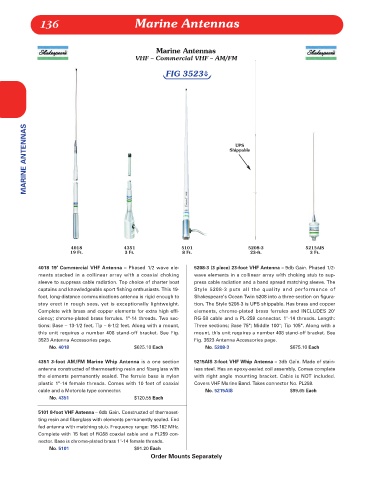

136 Marine Antennas

Marine Antennas
VHF – Commercial VHF – AM/FM

FIG 3523b

MARINE ANTENNAS Shippable

UPS

4018 4351 5101 5208-3 5215AIS
19 Ft. 3 Ft. 8 Ft. 23-ft. 3 Ft.

4018 19' Commercial VHF Antenna – Phased 1/2 wave ele- 5208-3 (3 piece) 23-foot VHF Antenna – 9db Gain. Phased 1/2-
ments stacked in a collinear array with a coaxial choking wave elements in a collinear array with choking stub to sup-
sleeve to suppress cable radiation. Top choice of charter boat press cable radiation and a band spread matching sleeve. The
captains and knowledgeable sport fishing enthusiasts. This 19- Style 5208-3 puts all the quality and performance of
foot, long-distance communications antenna is rigid enough to Shakespeare's Ocean Twin 5208 into a three-section on figura-
stay erect in rough seas, yet is exceptionally lightweight. tion. The Style 5208-3 is UPS shippable. Has brass and copper
Complete with brass and copper elements for extra high effi- elements, chrome-plated brass ferrules and INCLUDES 20'
ciency; chrome-plated brass ferrules. 1"-14 threads. Two sec- RG-58 cable and a PL-259 connector. 1"-14 threads. Length:
tions: Base – 13-1/2 feet, Tip – 6-1/2 feet. Along with a mount, Three sections; Base 75"; Middle 100"; Tip 105". Along with a
this unit requires a number 408 stand-off bracket. See Fig. mount, this unit requires a number 408 stand-off bracket. See
3523 Antenna Accessories page. Fig. 3523 Antenna Accessories page.
No. 4018 $625.10 Each No. 5208-3 $675.10 Each

4351 3-foot AM/FM Marine Whip Antenna is a one section 5215AIS 3-foot VHF Whip Antenna – 3db Gain. Made of stain-
antenna constructed of thermosetting resin and fiberglass with less steel. Has an epoxy-sealed coil assembly. Comes complete
the elements permanently sealed. The ferrule base is nylon with right angle mounting bracket. Cable is NOT included.
plastic 1"-14 female threads. Comes with 10 feet of coaxial Covers VHF Marine Band. Takes connector No. PL259.
cable and a Motorola type connector. No. 5215AIS $99.65 Each
No. 4351 $120.55 Each

5101 8-foot VHF Antenna – 6db Gain. Constructed of thermoset-
ting resin and fiberglass with elements permanently sealed. End
fed antenna with matching stub. Frequency range: 156-162 MHz.
Complete with 15 feet of RG58 coaxial cable and a PL259 con-
nector. Base is chrome-plated brass 1"-14 female threads.
No. 5101 $91.20 Each
Order Mounts Separately
