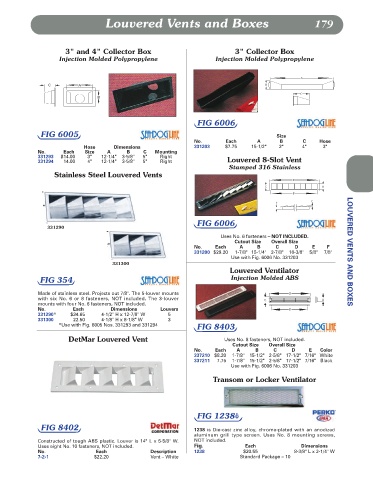

Louvered Vents and Boxes 179

3" and 4" Collector Box 3" Collector Box
Injection Molded Polypropylene Injection Molded Polypropylene

A
B
C

FIG 6006

FIG 6005 Size
No. Each A B C Hose
Hose Dimensions 331203 $7.75 15-1/2" 2" 4" 3"
No. Each Size A B C Mounting
331293 $14.00 3" 12-1/4" 3-5/8" 5" Right
331294 14.00 4" 12-1/4" 3-5/8" 5" Right Louvered 8-Slot Vent
Stamped 316 Stainless
Stainless Steel Louvered Vents
D
C A
B
E
F

FIG 6006
331290
Uses No. 6 fasteners – NOT INCLUDED.
Cutout Size Overall Size
No. Each A B C D E F
331200 $29.20 1-7/8" 15-1/4" 2-7/8" 16-3/8" 5/8" 7/8" LOUVERED VENTS AND BOXES
Use with Fig. 6006 No. 331203
331300
Louvered Ventilator
FIG 354 Injection Molded ABS

Made of stainless steel. Projects out 7/8". The 5-louver mounts D
with six No. 6 or 8 fasteners, NOT included. The 3-louver C A
mounts with four No. 6 fasteners, NOT included.
No. Each Dimensions Louvers B
331290* $34.65 4-1/2" H x 12-7/8" W 5
331300 22.50 4-1/8" H x 8-1/8" W 3
*Use with Fig. 6005 Nos. 331293 and 331294 FIG 8403

DetMar Louvered Vent Uses No. 8 fasteners, NOT included.
Cutout Size Overall Size
No. Each A B C D E Color
337210 $8.20 1-7/8" 15-1/2" 2-5/8" 17-1/2" 7/16" White
337211 7.75 1-7/8" 15-1/2" 2-5/8" 17-1/2" 7/16" Black
Use with Fig. 6006 No. 331203

Transom or Locker Ventilator

FIG 1238b

FIG 8402 1238 is Die-cast zinc alloy, chrome-plated with an anodized
aluminum grill type screen. Uses No. 8 mounting screws,
Constructed of tough ABS plastic. Louver is 14" L x 5-5/8" W. NOT included.
Uses eight No. 10 fasteners, NOT included. Fig. Each Dimensions
No. Each Description 1238 $20.55 8-3/8" L x 2-1/4" W
7-2-1 $22.20 Vent – White Standard Package – 10
