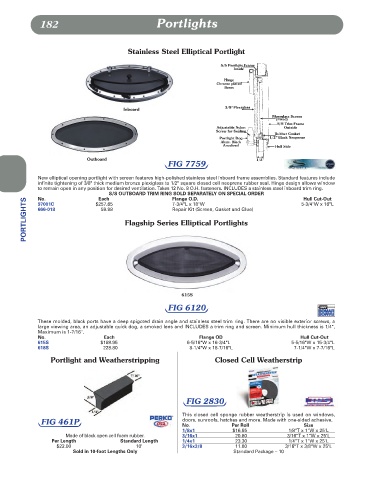

Page 183 - Lewis

182 Portlights

Stainless Steel Elliptical Portlight

Inboard

Outboard
FIG 7759

New elliptical opening portlight with screen features high-polished stainless steel inboard frame assemblies. Standard features include
infinite tightening of 3/8" thick medium bronze plexiglass to 1/2" square closed cell neoprene rubber seal. Hinge design allows window
to remain open in any position for desired ventilation. Takes 12 No. 8 O.H. fasteners. INCLUDES a stainless steel inboard trim ring.
S/S OUTBOARD TRIM RING SOLD SEPARATELY ON SPECIAL ORDER 5-3/4"W x 16"L
Flange O.D.
Hull Cut-Out
Each
No.
PORTLIGHTS 666-018 59.98 Flagship Series Elliptical Portlights
$257.65
97001C
7-3/4"L x 18"W
Repair Kit (Screen, Gasket and Glue)

615S
FIG 6120

These molded, black ports have a deep spigoted drain angle and stainless steel trim ring. There are no visible exterior screws, a
large viewing area, an adjustable quick dog, a smoked lens and INCLUDES a trim ring and screen. Minimum hull thickness is 1/4",
Maximum is 1-7/16".
No. Each Flange OD Hull Cut-Out
615S $188.95 6-5/16"W x 16-3/4"L 5-5/16"W x 15-3/4"L
618S 228.80 8-1/4"W x 18-7/16"L 7-1/4"W x 7-7/16"L
Portlight and Weatherstripping Closed Cell Weatherstrip

FIG 2830

This closed cell sponge rubber weatherstrip is used on windows,
FIG 461P doors, sunroofs, hatches and more. Made with one-sided adhesive.
No. Per Roll Size
1/8x1 $16.55 1/8"T x 1"W x 25'L
Made of black open cell foam rubber. 3/16x1 20.80 3/16"T x 1"W x 25'L
Per Length Standard Length 1/4x1 23.30 1/4"T x 1"W x 25'L
$22.00 10' 3/16x3/8 11.80 3/16"T x 3/8"W x 25'L
Sold in 10-foot Lengths Only Standard Package – 10
