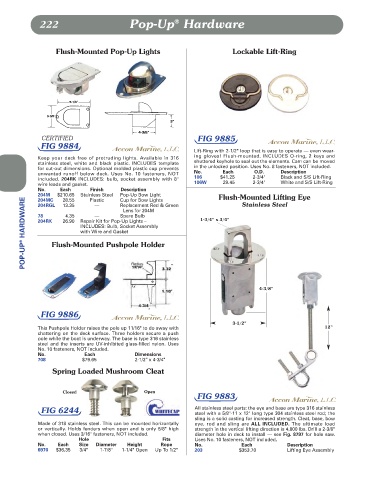

222 Pop-Up Hardware
®

Flush-Mounted Pop-Up Lights Lockable Lift-Ring

CERTIFIED FIG 9885
FIG 9884
Lift-Ring with 2-1/2" loop that is easy to operate — even wear-
Keep your deck free of protruding lights. Available in 316 ing gloves! Flush-mounted. INCLUDES O-ring, 2 keys and
stainless steel, white and black plastic. INCLUDES template shuttered keyhole to seal out the elements. Cam can be moved
for cut-out dimensions. Optional molded plastic cup prevents in the unlocked position. Uses No. 8 fasteners, NOT included.
unwanted runoff below deck. Uses No. 10 fasteners, NOT No. Each O.D. Description
included. 204RK INCLUDES: bulb, socket assembly with 8" 106 $41.25 2-3/4" Black and S/S Lift-Ring
wire leads and gasket. 106W 29.45 2-3/4" White and S/S Lift-Ring
No. Each Finish Description
204M $210.65 Stainless Steel Pop-Up Bow Light Flush-Mounted Lifting Eye
HARDWARE 78 26.90 Repair Kit for Pop-Up Lights – 1-3/4" x 3/4"
Cup for Bow Lights
Plastic
28.55
204MC
Stainless Steel
204RGL
—
13.35
Replacement Red & Green
Lens for 204M
4.35
Spare Bulb
—
204RK
INCLUDES: Bulb, Socket Assembly
with Wire and Gasket
POP-UP ® Flush-Mounted Pushpole Holder "
4-3/8"
"

"
FIG 9886
3-1/2"
This Pushpole Holder raises the pole up 11/16" to do away with 12"
chattering on the deck surface. Three holders secure a push
pole while the boat is underway. The base is type 316 stainless
steel and the inserts are UV-inhibited glass-filled nylon. Uses
No. 10 fasteners, NOT included.
No. Each Dimensions
708 $79.65 2-1/2" x 4-3/4"
Spring Loaded Mushroom Cleat

Closed Open
FIG 9883

FIG 6244 All stainless steel parts: the eye and base are type 316 stainless
steel with a 5/8"-11 x 12" long type 304 stainless steel rod; the
sling is a solid casting for increased strength. Cleat, base, bow
Made of 318 stainless steel. This can be mounted horizontally eye, rod and sling are ALL INCLUDED. The ultimate load
or vertically. Holds fenders when open and is only 5/8" high strength in the vertical lifting direction is 4,000 lbs. Drill a 2-3/8"
when closed. Uses 3/16" fasteners, NOT included. diameter hole in deck to install — see Fig. 8797 for hole saw.
Hole Fits Uses No. 10 fasteners, NOT included.
No. Each Size Diameter Height Rope No. Each Description
6970 $36.35 3/4" 1-7/8" 1-1/4" Open Up To 1/2" 203 $353.70 Lifting Eye Assembly
