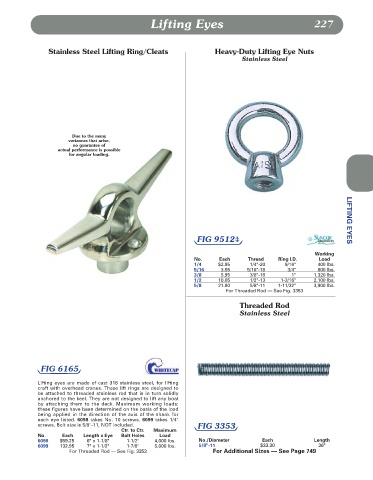

Lifting Eyes 227

Stainless Steel Lifting Ring/Cleats Heavy-Duty Lifting Eye Nuts
Stainless Steel

Due to the many
variances that arise,
no guarantee of
actual performance is possible
for angular loading.

FIG 9512b LIFTING EYES

Working
No. Each Thread Ring I.D. Load
1/4 $2.95 1/4"-20 9/16" 400 lbs.
5/16 3.55 5/16"-18 3/4" 800 lbs.
3/8 5.95 3/8"-16 1" 1,320 lbs.
1/2 10.65 1/2"-13 1-3/16" 2,100 lbs.
5/8 21.90 5/8"-11 1-11/32" 3,900 lbs.
For Threaded Rod — See Fig. 3353

Threaded Rod
Stainless Steel

FIG 6165

Lifting eyes are made of cast 316 stainless steel, for lifting
craft with overhead cranes. These lift rings are designed to
be attached to threaded stainless rod that is in turn solidly
anchored to the keel. They are not designed to lift any boat
by attaching them to the deck. Maximum working loads:
these figures have been determined on the basis of the load
being applied in the direction of the axis of the shank for
each eye listed. 6098 takes No. 10 screws. 6099 takes 1/4"
screws. Bolt size is 5/8"-11, NOT included. FIG 3353
Ctr. to Ctr. Maximum
No. Each Length x Eye Bolt Holes Load
6098 $59.25 6" x 1-1/8" 1-1/2" 4,000 lbs. No./Diameter Each Length
6099 132.95 7" x 1-1/2" 1-7/8" 5,000 lbs. 5/8"-11 $33.30 36"
For Threaded Rod — See Fig. 3353 For Additional Sizes — See Page 749
