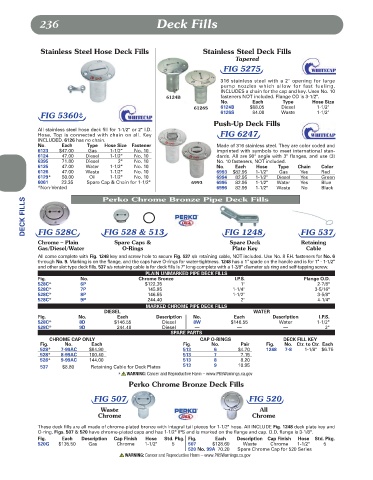

236                                    Deck Fills




               Stainless Steel Hose Deck Fills                        Stainless Steel Deck Fills
                                                                                Tapered
                                                                            FIG 5275

                                                                            316 stainless steel with a 2" opening for large
                                                                            pump  nozzles  which  allow  for  fast  fueling.
                                                                            INCLUDES a chain for the cap and key. Uses No. 10
                                                         6124B              fasteners NOT included. Flange OD is 3-1/2".
                                                                            No.       Each       Type     Hose Size
                                                                   6126S    6124B    $88.05     Diesel      1-1/2"
                                                                            6126S     84.00     Waste       1-1/2"
               FIG 5360b
                                                                         Push-Up Deck Fills
              All stainless steel hose deck fill for 1-1/2" or 2" I.D.
              Hose. Top is connected with chain on all. Key                FIG 6247
              INCLUDED. 6126 has no chain.
              No.     Each    Type  Hose Size  Fastener                   Made of 316 stainless steel. They are color coded and
              6123   $47.00    Gas    1-1/2"  No. 10                      imprinted with symbols to meet international stan-
              6124    47.00   Diesel  1-1/2"  No. 10                      dards. All are 90° angle with 3" flanges, and use (3)
              6395    71.80   Diesel     2"   No. 10                      No. 10 fasteners, NOT included.
              6125    47.00   Water   1-1/2"  No. 10                      No.   Each    Hose   Type   Chain   Color
              6126    47.00   Waste   1-1/2"  No. 10                      6993  $82.95  1-1/2"  Gas    Yes    Red
              6129*   50.00    Oil    1-1/2"  No. 10                      6994   82.95  1-1/2"  Diesel  Yes   Green
              6061    23.35   Spare Cap & Chain for 1-1/2"        6993    6995   82.95  1-1/2"  Water  Yes    Blue
              *Non-Vented           Perko Chrome Bronze Pipe Deck Fills                       Waste    No     Black
                                                                                       1-1/2"
                                                                                 82.95
                                                                          6996
         DECK FILLS



              FIG 528C

                                                                                                       Retaining
                                                                               Spare Deck
                                        Spare Caps &
              Chrome – Plain        FIG 528 & 513                            FIG 1248                  FIG 537
              Gas/Diesel/Water            O-Rings                               Plate Key               Cable
              All come complete with Fig. 1248 key and screw hole to secure Fig. 537 s/s retaining cable, NOT included. Use No. 8 F.H. fasteners for No. 6
              through No. 9. Marking is on the flange, and the caps have O-rings for water-tightness. 1248 has a 1" spade on the handle and is for 1" - 1-1/2"
              and other slot type deck fills. 537 s/s retaining cable is for deck fills is 7" long complete with a 1-3/8" diameter s/s ring and self-tapping screw.
                                                  PLAIN UNMARKED PIPE DECK FILLS
              Fig.          No.                 Chrome Bronze                   I.P.S.                  Flange O.D.
              528C*         6P                    $122.35                         1"                        2-7/8"
              528C*         7P                     145.95                       1-1/4"                     3-5/16"
              528C*         8P                     146.55                       1-1/2"                      3-5/8"
              528C*         9P                     244.40                         2"                        4-1/4"
                                                  MARKED CHROME PIPE DECK FILLS
                                    DIESEL                                             WATER
              Fig.          No.          Each         Description  No.          Each         Description     I.P.S.
              528C*         8D          $146.55         Diesel    8W           $146.55         Water        1-1/2"
              528C*         9D           244.40         Diesel     —             —               —             2"
                                                           SPARE PARTS
                  CHROME CAP ONLY                                    CAP O-RINGS                 DECK FILL KEY
               Fig.    No.      Each                           Fig.     No.       Pair     Fig.  No. Ctr. to Ctr. Each
               528*   7-99AC   $84.90                          513       6       $4.70     1248  7-8    1-1/8" $6.75
               528*   8-99AC   100.40                          513       7        7.15
               528*   9-99AC   144.00                          513       8        8.20
               537    $8.80     Retaining Cable for Deck Plates  513     9       10.95
                                         *  WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
                                             Perko Chrome Bronze Deck Fills


                                 FIG 507                                             FIG 520
                                   Waste                                                 All
                                  Chrome                                              Chrome

              These deck fills are all made of chrome-plated bronze with integral tail pieces for 1-1/2" hose. All INCLUDE Fig. 1248 deck plate key and
              O-ring. Figs. 507 & 520 have chrome-plated caps and has 1-1/2" IPS and is marked on the flange and cap. O.D. flange is 3-1/8".
              Fig.    Each   Description   Cap Finish  Hose  Std. Pkg. Fig.  Each  Description  Cap Finish  Hose  Std. Pkg.
              520G   $135.50   Gas      Chrome    1-1/2"   5     507     $128.60   Waste    Chrome   1-1/2"   5
                                                                 520 No. 99A 70.20  Spare Chrome Cap for 520 Series
                                           WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
