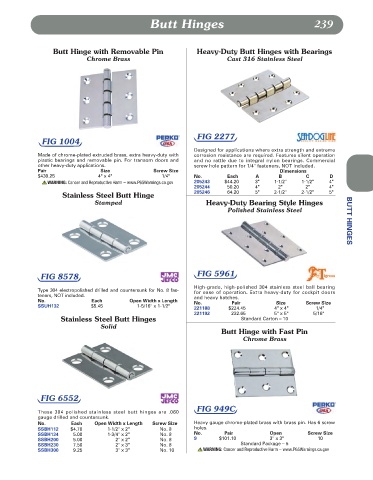

Butt Hinges 239

Butt Hinge with Removable Pin Heavy-Duty Butt Hinges with Bearings
Chrome Brass Cast 316 Stainless Steel

FIG 2277
FIG 1004
Designed for applications where extra strength and extreme
Made of chrome-plated extruded brass, extra heavy-duty with corrosion resistance are required. Features silent operation
plastic bearings and removable pin. For transom doors and and no rattle due to integral nylon bearings. Commercial
other heavy-duty applications. screw hole pattern for 1/4" fasteners, NOT included.
Pair Size Screw Size Dimensions
$439.25 4" x 4" 1/4" No. Each A B C D
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 205243 $44.20 3" 1-1/2" 1-1/2" 4"
205244 50.20 4" 2" 2" 4"
205246 64.20 5" 2-1/2" 2-1/2" 5"
Stainless Steel Butt Hinge
Stamped Heavy-Duty Bearing Style Hinges
Polished Stainless Steel BUTT HINGES

FIG 5961
FIG 8578
High-grade, high-polished 304 stainless steel ball bearing
Type 304 electropolished drilled and countersunk for No. 8 fas- for ease of operation. Extra heavy-duty for cockpit doors
teners, NOT included. and heavy hatches.
No. Each Open Width x Length No. Pair Size Screw Size
SSUH132 $5.45 1-5/16" x 1-1/2"
221188 $224.45 4" x 4" 1/4"
221192 232.65 5" x 5" 5/16"
Stainless Steel Butt Hinges Standard Carton – 10
Solid
Butt Hinge with Fast Pin
Chrome Brass

FIG 6552

FIG 949C
These 304 polished stainless steel butt hinges are .060
gauge drilled and countersunk.
No. Each Open Width x Length Screw Size Heavy gauge chrome-plated brass with brass pin. Has 6 screw
SSBH112 $4.70 1-1/2" x 2" No. 8 holes.
SSBH134 5.00 1-3/4" x 2" No. 8 No. Pair Open Screw Size
SSBH200 5.00 2" x 2" No. 8 9 $101.10 3" x 3" 10
SSBH230 7.50 2" x 3" No. 8 Standard Package – 5
SSBH300 9.25 3" x 3" No. 10 WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
