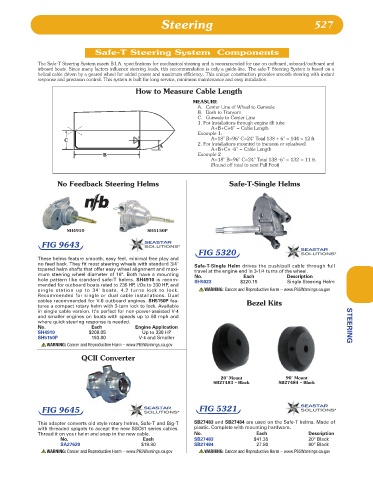

Page 528 - Lewis

Steering 527

Safe-T Steering System Components

The Safe-T Steering System meets B.I.A. specifications for mechanical steering and is recommended for use on outboard, inboard/outboard and
inboard boats. Since many factors influence steering loads, this recommendation is only a guide-line. The safe-T Steering System is based on a
helical cable driven by a geared wheel for added power and maximum efficiency. This unique construction provides smooth steering with instant
response and precision control. This system is built for long service, minimum maintenance and easy installation.

How to Measure Cable Length
MEASURE
A. Center Line of Wheel to Gunwale
B. Dash to Transom
C. Gunwale to Center Line
1. For Installations through engine tilt tube
A+B+C+6" = Cable Length
Example 1:
A=18" B=96" C=24" Total 138 + 6" = 144 = 12 ft.
2. For Installations mounted to transom or splashwell
A+B+C+ -6" = Cable Length
Example 2
A=18" B=96" C=24" Total 138 -6" = 132 = 11 ft.
(Round off total to next Full Foot)

No Feedback Steering Helms Safe-T-Single Helms

SH4910 SH5150P

FIG 9643
FIG 5320
These helms feature smooth, easy feel, minimal free play and
no feed back. They fit most steering wheels with standard 3/4" Safe-T-Single Helm drives the push/pull cable through full
tapered helm shafts that offer easy wheel alignment and maxi- travel at the engine end in 3-1/4 turns of the wheel.
mum steering wheel diameter of 16". Both have a mounting No. Each Description
hole pattern like standard safe-T helms. SH4910 is recom- SH5023 $220.15 Single Steering Helm
mended for outboard boats rated to 235 HP, I/Os to 330 HP, and
single station up to 34' boats. 4.2 turns lock to lock. WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Recommended for single or dual cable installations. Dual
cables recommended for V-6 outboard engines. SH5150P fea- Bezel Kits
tures a compact rotary helm with 3-turn lock to lock. Available
in single cable version. It's perfect for non-power-assisted V-4
and smaller engines on boats with speeds up to 50 mph and
where quick steering response is needed.
No. Each Engine Application STEERING
SH4910 $208.05 Up to 330 HP
SH5150P 193.80 V-4 and Smaller
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

QCII Converter

20˚ Mount 90˚ Mount
SB27483 – Black SB27484 – Black

FIG 9645 FIG 5321

This adapter converts old style rotary helms, Safe-T and Big-T SB27483 and SB27484 are used on the Safe-T helms. Made of
with threaded spigots to accept the new SSC61 series cables. plastic. Complete with mounting hardware.
Thread it on your helm and snap in the new cable. No. Each Description
No. Each SB27483 $41.35 20° Black
SA27620 $19.80 SB27484 27.80 90° Black
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
