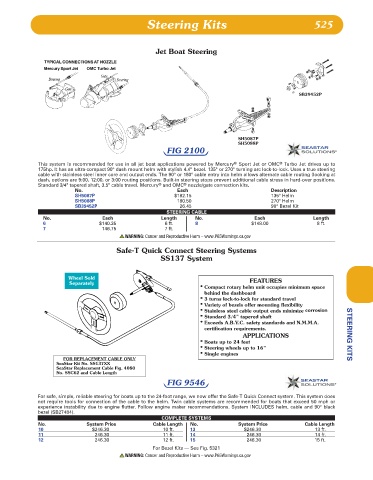

Page 526 - Lewis

Steering Kits 525

Jet Boat Steering

SB39452P

SH5087P
SH5088P
FIG 2100

This system is recommended for use in all jet boat applications powered by Mercury ® Sport Jet or OMC ® Turbo Jet drives up to
175hp. It has an ultra-compact 90° dash mount helm with stylish 4.4" bezel. 135° or 270° turning arc lock-to-lock. Uses a true steering
cable with stainless steel inner core and output ends. The 90° or 180° cable entry into helm allows alternate cable routing (looking at
dash, options are 9:00, 12:00, or 3:00 routing positions. Built-in steering stops prevent additional cable stress in hard-over positions.
Standard 3/4" tapered shaft, 3.5" cable travel. Mercury ® and OMC ® nozzle/gate connection kits.
No. Each Description
SH5087P $182.15 135° Helm
SH5088P 180.50 270° Helm
SB39452P 26.45 90° Bezel Kit
STEERING CABLE
No. Each Length No. Each Length
6 $140.35 6 ft. 8 $148.00 8 ft.
7 146.75 7 ft.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Safe-T Quick Connect Steering Systems
SS137 System

Wheel Sold
Separately FEATURES
• Compact rotary helm unit occupies minimum space
behind the dashboard
• 3 turns lock-to-lock for standard travel
• Variety of bezels offer mounting flexibility
• Stainless steel cable output ends minimize corrosion
• Standard 3/4" tapered shaft
• Exceeds A.B.Y.C. safety standards and N.M.M.A.
certification requirements.
APPLICATIONS STEERING KITS
• Boats up to 24 feet
• Steering wheels up to 16"
• Single engines
FOR REPLACEMENT CABLE ONLY
SeaStar Kit No. SS137XX
SeaStar Replacement Cable Fig. 4080
No. SSC62 and Cable Length
FIG 9546

For safe, simple, reliable steering for boats up to the 24-foot range, we now offer the Safe-T Quick Connect system. This system does
not require tools for connection of the cable to the helm. Twin cable systems are recommended for boats that exceed 50 mph or
experience instability due to engine flutter. Follow engine maker recommendations. System INCLUDES helm, cable and 90° black
bezel (SB27484).
COMPLETE SYSTEMS
No. System Price Cable Length No. System Price Cable Length
10 $246.30 10 ft. 13 $246.30 13 ft.
11 246.30 11 ft. 14 246.30 14 ft.
12 246.30 12 ft. 15 246.30 15 ft.
For Bezel Kits — See Fig. 5321
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
