1. Windlasses

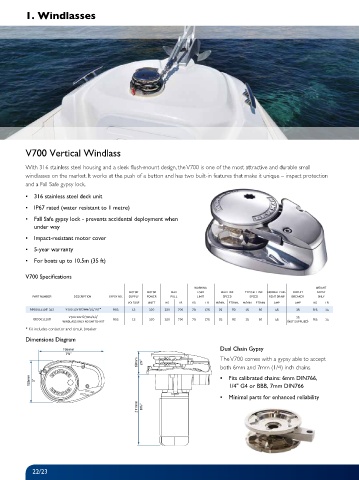

V700 Vertical Windlass

With 316 stainless steel housing and a sleek fl ush-mount design, the V700 is one of the most attractive and durable small
windlasses on the market. It works at the push of a button and has two built-in features that make it unique – impact protection
and a Fall Safe gypsy lock.

▪ 316 stainless steel deck unit
▪ IP67 rated (water resistant to 1 metre)
▪ Fall Safe gypsy lock - prevents accidental deployment when
under way
▪ Impact-resistant motor cover

▪ 5-year warranty
▪ For boats up to 10.5m (35 ft)

V700 Specifications

 
196mm
         -  
7¾"
    .          
      /. /. / /    
-   / / / " * .
  / / / "
.
     128mm 5" ( )
* Kit includes contactor and circuit breaker
Dimensions Diagram
196mm Dual Chain Gypsy
7¾"
69mm 2¾" The V700 comes with a gypsy able to accept
both 6mm and 7mm (1/4) inch chains.
128mm 5" ▪ Fits calibrated chains: 6mm DIN766,
1/4" G4 or BBB, 7mm DIN766
▪ Minimal parts for enhanced reliability
211mm 8 ⁄ "

69mm 2¾"

211mm 22/23
8 ⁄ "
