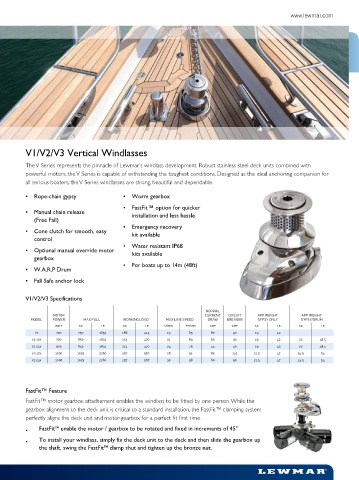

V1/V2/V3 Vertical Windlasses

The V Series represents the pinnacle of Lewmar's windlass development. Robust stainless steel deck units combined with
powerful motors, the V Series is capable of withstanding the toughest conditions. Designed as the ideal anchoring companion for
all serious boaters, the V Series windlasses are strong, beautiful and dependable.

▪ Rope-chain gypsy ▪ Worm gearbox
▪ FastFit™ option for quicker
▪ Manual chain release installation and less hassle
(Free Fall)
▪ Emergency recovery
▪ Cone clutch for smooth, easy kit available
control
▪ Water resistant IP68
▪ Optional manual override motor kits available
gearbox
▪ For boats up to 14m (48ft)
▪ W.A.R.P Drum
▪ Fall Safe anchor lock

V1/V2/V3 Specifications

NORMAL
MOTOR CURRENT CIRCUIT APP WEIGHT APP WEIGHT
MODEL POWER MAX PULL WORKING LOAD MAX LINE SPEED DRAW BREAKER GYPSY ONLY GYPSY/DRUM
     / /      
 – –
  .
  .
  . .
  . .

FastFit™ Feature
FastFit™ motor gearbox attachement enables the windlass to be fi tted by one person. While the
gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system
perfectly aligns the deck unit and motor-gearbox for a perfect fi t fi rst time.

▪ FastFit™ enable the motor / gearbox to be rotated and fixed in increments of 45°
▪ To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up
the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.
