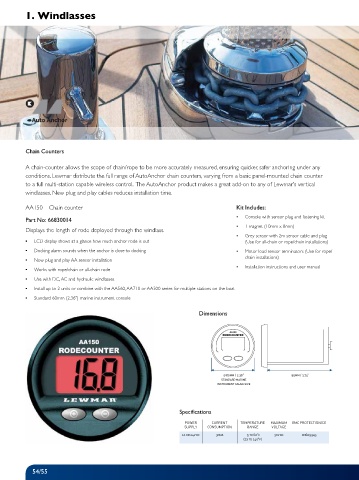

Page 54 - Lewmar

1. Windlasses

Chain Counters

A chain-counter allows the scope of chain/rope to be more accurately measured, ensuring quicker, safer anchoring under any
conditions. Lewmar distribute the full range of AutoAnchor chain counters, varying from a basic panel-mounted chain counter
to a full multi-station capable wireless control. The AutoAnchor product makes a great add-on to any of Lewmar's vertical
windlasses. New plug and play cables reduces installation time.

AA150 – Chain counter Kit Includes:
▪ Console with sensor plug and fastening kit
Part No: 66830014
▪ 1 magnet (10mm x 8mm)
Displays the length of rode deployed through the windlass.
▪ Grey sensor with 2m sensor cable and plug
▪ LCD display shows at a glance how much anchor rode is out (Use for all-chain or rope/chain installations)
▪ Docking alarm sounds when the anchor is close to docking ▪ Motor load sensor terminators (Use for rope/
chain installations)
▪ Now plug and play AA sensor installation
▪ Works with rope/chain or all-chain rode ▪ Installation instructions and user manual
▪ Use with DC, AC and hydraulic windlasses
▪ Install up to 2 units or combine with the AA560, AA710 or AA300 series for multiple stations on the boat
▪ Standard 60mm (2.36") marine instrument console

Dimensions

  / . "  / . "
 
  

Specifications

POWER CURRENT TEMPERATURE MAXIMUM EMC PROTECTION/CE
SUPPLY CONSUMPTION RANGE VOLTAGE
    -  °   
(  °)

54/55
