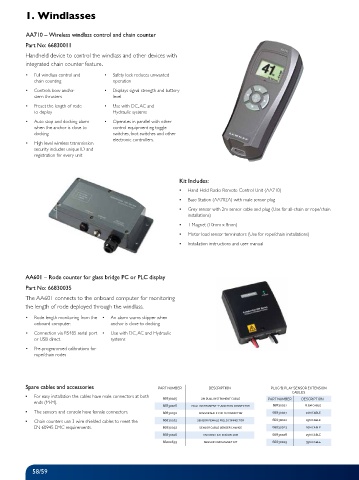

P. 58
1. Windlasses
AA710 – Wireless windlass control and chain counter
Part No: 66830011
Handheld device to control the windlass and other devices with
integrated chain counter feature.
• Full windlass control and • Safety lock reduces unwanted
chain counting operation
• Controls bow and/or • Displays signal strength and battery
stern thrusters level
• Preset the length of rode • Use with DC, AC and
to deploy Hydraulic systems
• Auto stop and docking alarm • Operates in parallel with other
when the anchor is close to control equipment eg toggle
docking switches, foot switches and other
electronic controllers.
• High level wireless transmission
security includes unique ID and
registration for every unit
Kit Includes:
▪ Hand Held Radio Remote Control Unit (AA710)
▪ Base Station (AA702A) with male sensor plug
▪ Grey sensor with 2m sensor cable and plug (Use for all-chain or rope/chain
installations)
▪ 1 Magnet (10mm x 8mm)
▪ Motor load sensor terminators (Use for rope/chain installations)
▪ Installation instructions and user manual
AA601 – Rode counter for glass bridge PC or PLC display
Part No: 66830035
The AA601 connects to the onboard computer for monitoring
the length of rode deployed through the windlass.
• Rode length monitoring from the • An alarm warns skipper when
onboard computer. anchor is close to docking
• Connection via RS485 serial port • Use with DC, AC and Hydraulic
or USB direct. systems
• Pre-programmed calibrations for
rope/chain rodes
Spare cables and accessories PART NUMBER DESCRIPTION PLUG & PLAY SENSOR EXTENSION
CABLES
▪ For easy installation the cables have male connectors at both
ends (M-M). PART NUMBER DESCRIPTION
- .
▪ The sensors and console have female connectors.
▪ Chain counters use 3 wire shielded cables to meet the
EN 60945 EMC requirements.
