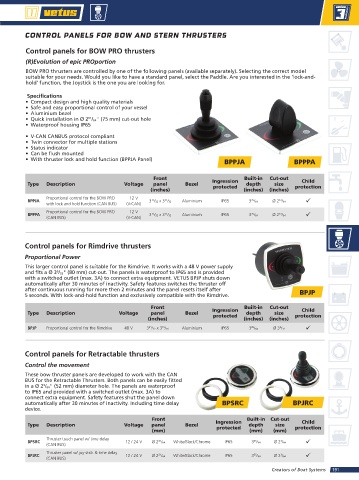

CONTROL PANELS FOR BOW AND STERN THRUSTERS

Control panels for BOW PRO thrusters
(R)Evolution of epic PROportion
BOW PRO thrusters are controlled by one of the following panels (available separately). Selecting the correct model
suitable for your needs. Would you like to have a standard panel, select the Paddle. Are you interested in the 'lock-and-
hold' function, the Joystick is the one you are looking for.

Specifications
• Compact design and high quality materials
• Safe and easy proportional control of your vessel
• Aluminium bezel
61
• Quick installation in Ø 2 / 64" (75 mm) cut-out hole
• Waterproof housing IP65
• V-CAN CANBUS protocol compliant
• Twin connector for multiple stations
• Status indicator
• Can be flush mounted
• With thruster lock and hold function (BPPJA Panel) BPPJA BPPPA

Front Built-in Cut-out
Child
Type Description Voltage panel Bezel Ingression depth size protection
protected
(inches) (inches) (inches)
Proportional control for the BOW PRO 12 V
61
BPPJA 3 /32 x 3 /32 Aluminium IP65 3 /64 Ø 2 /64 
35
11
11
with lock and hold function (CAN BUS) (V-CAN)
Proportional control for the BOW PRO 12 V
BPPPA 3 /32 x 3 /32 Aluminium IP65 3 /64 Ø 2 /64 
11
11
61
35
(CAN BUS) (V-CAN)
Control panels for Rimdrive thrusters
Proportional Power
This larger control panel is suitable for the Rimdrive. It works with a 48 V power supply
and fits a Ø 3 / 32" (80 mm) cut-out. The panels is waterproof to IP65 and is provided
5
with a switched outlet (max. 3A) to connect extra equipment. VETUS BPJP shuts down
automatically after 30 minutes of inactivity. Safety features switches the thruster off
after continuous running for more then 2 minutes and the panel resets itself after BPJP
5 seconds. With lock-and-hold function and exclusively compatible with the Rimdrive.
Front Built-in Cut-out
Child
Type Description Voltage panel Bezel Ingression depth size protection
protected
(inches) (inches) (inches)
BPJP Proportional control for the Rimdrive 48 V 3 /32 x 3 /16 Aluminium IP65 3 /64 Ø 3 /32 
31
15
5
35
Control panels for Retractable thrusters
Control the movement
These bow thruster panels are developed to work with the CAN
BUS for the Retractable Thrusters. Both panels can be easily fitted
in a Ø 2 / 64" (52 mm) diameter hole. The panels are waterproof
3
to IP65 and provided with a switched outlet (max. 3A) to
connect extra equipment. Safety features shut the panel down
automatically after 30 minutes of inactivity. Including time delay BPSRC BPJRC
device.
Front Built-in Cut-out
Child
Type Description Voltage panel Bezel Ingression depth size protection
protected
(mm) (mm) (mm)
Thruster touch panel w/ time delay
BPSRC 12 / 24 V Ø 2 /64 White/Black/Chrome IP65 3 /64 Ø 2 /64 
3
35
31
(CAN BUS)
Thruster panel w/ joy-stick & time delay
3
31
BPJRC 12 / 24 V Ø 2 /64 White/Black/Chrome IP65 3 /64 Ø 2 /64 
35
(CAN BUS)
Creators of Boat Systems 191
