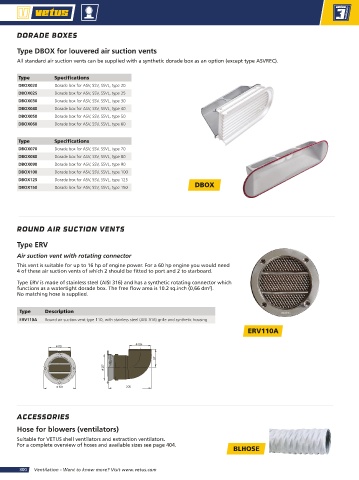

Page 300 - Vetus

DORADE BOXES

Type DBOX for louvered air suction vents
All standard air suction vents can be supplied with a synthetic dorade box as an option (except type ASVREC).

Type Specifications
DBOX020 Dorade box for ASV, SSV, SSVL, type 20
DBOX025 Dorade box for ASV, SSV, SSVL, type 25
DBOX030 Dorade box for ASV, SSV, SSVL, type 30
DBOX040 Dorade box for ASV, SSV, SSVL, type 40
DBOX050 Dorade box for ASV, SSV, SSVL, type 50
DBOX060 Dorade box for ASV, SSV, SSVL, type 60

Type Specifications
DBOX070 Dorade box for ASV, SSV, SSVL, type 70
DBOX080 Dorade box for ASV, SSV, SSVL, type 80
DBOX090 Dorade box for ASV, SSV, SSVL, type 90
DBOX100 Dorade box for ASV, SSV, SSVL, type 100
DBOX125 Dorade box for ASV, SSV, SSVL, type 125
DBOX150 Dorade box for ASV, SSV, SSVL, type 150 DBOX

ROUND AIR SUCTION VENTS

Type ERV
Air suction vent with rotating connector
This vent is suitable for up to 16 hp of engine power. For a 60 hp engine you would need
4 of these air suction vents of which 2 should be fitted to port and 2 to starboard.

Type ERV is made of stainless steel (AISI 316) and has a synthetic rotating connector which
2
functions as a watertight dorade box. The free flow area is 10.2 sq.inch (0,66 dm ).
No matching hose is supplied.

Type Description
ERV110A Round air suction vent type 110, with stainless steel (AISI 316) grille and synthetic housing
ERV110A

ACCESSORIES
Hose for blowers (ventilators)
Suitable for VETUS shell ventilators and extraction ventilators.
For a complete overview of hoses and available sizes see page 404.
BLHOSE

300 Ventilation - Want to know more? Visit www.vetus.com
