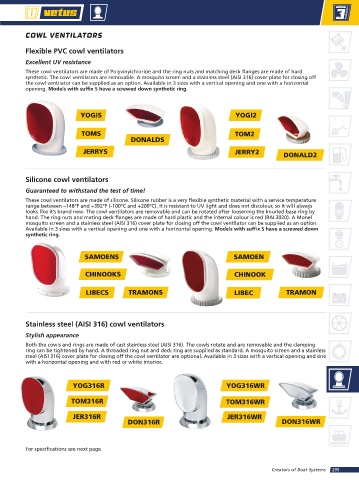

Page 295 - Vetus

COWL VENTILATORS

Flexible PVC cowl ventilators
Excellent UV resistance
These cowl ventilators are made of Polyvinylchloride and the ring nuts and matching deck flanges are made of hard
synthetic. The cowl ventilators are removable. A mosquito screen and a stainless steel (AISI 316) cover plate for closing off
the cowl ventilator can be supplied as an option. Available in 3 sizes with a vertical opening and one with a horizontal
opening. Models with suffix S have a screwed down synthetic ring.

YOGIS YOGI2

TOMS TOM2
DONALDS
JERRYS JERRY2 DONALD2

Silicone cowl ventilators

Guaranteed to withstand the test of time!
These cowl ventilators are made of silicone. Silicone rubber is a very flexible synthetic material with a service temperature
range between –148°F and +392°F (-100ºC and +200ºC). It is resistant to UV light and does not discolour, so it will always
looks like it’s brand new. The cowl ventilators are removable and can be rotated after loosening the knurled base ring by
hand. The ring nuts and mating deck flanges are made of hard plastic and the internal colour is red (RAL3020). A Monel
mosquito screen and a stainless steel (AISI 316) cover plate for closing off the cowl ventilator can be supplied as an option.
Available in 3 sizes with a vertical opening and one with a horizontal opening. Models with suffix S have a screwed down
synthetic ring.

SAMOENS SAMOEN

CHINOOKS CHINOOK

LIBECS TRAMONS LIBEC TRAMON

Stainless steel (AISI 316) cowl ventilators
Stylish appearance

Both the cowls and rings are made of cast stainless steel (AISI 316). The cowls rotate and are removable and the clamping
ring can be tightened by hand. A threaded ring nut and deck ring are supplied as standard. A mosquito screen and a stainless
steel (AISI 316) cover plate for closing off the cowl ventilator are optional. Available in 3 sizes with a vertical opening and one
with a horizontal opening and with red or white interior.

YOG316R YOG316WR

TOM316R TOM316WR

JER316R JER316WR
DON316R DON316WR

For specifications see next page.
