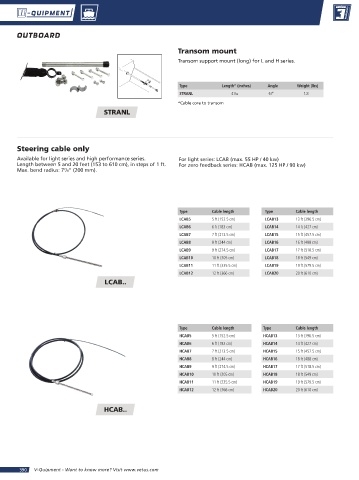

Page 390 - Vetus

OUTBOARD

Transom mount
Transom support mount (long) for L and H series.

Type Length* (inches) Angle Weight (lbs)
STRANL 4 /64 67˚ 1.8
1
*Cable core to transom
STRANL

Steering cable only
Available for light series and high performance series. For light series: LCAB (max. 55 HP / 40 kw)
Length between 5 and 20 feet (153 to 610 cm), in steps of 1 ft. For zero feedback series: HCAB (max. 125 HP / 90 kw)
Max. bend radius: 7 /8“ (200 mm).
7

Type Cable length Type Cable length
LCAB5 5 ft (152.5 cm) LCAB13 13 ft (396.5 cm)
LCAB6 6 ft (183 cm) LCAB14 14 ft (427 cm)
LCAB7 7 ft (213.5 cm) LCAB15 15 ft (457.5 cm)
LCAB8 8 ft (244 cm) LCAB16 16 ft (488 cm)
LCAB9 9 ft (274.5 cm) LCAB17 17 ft (518.5 cm)
LCAB10 10 ft (305 cm) LCAB18 18 ft (549 cm)
LCAB11 11 ft (335.5 cm) LCAB19 19 ft (579.5 cm)
LCAB12 12 ft (366 cm) LCAB20 20 ft (610 cm)
LCAB..

Type Cable length Type Cable length
HCAB5 5 ft (152.5 cm) HCAB13 13 ft (396.5 cm)
HCAB6 6 ft (183 cm) HCAB14 14 ft (427 cm)
HCAB7 7 ft (213.5 cm) HCAB15 15 ft (457.5 cm)
HCAB8 8 ft (244 cm) HCAB16 16 ft (488 cm)
HCAB9 9 ft (274.5 cm) HCAB17 17 ft (518.5 cm)
HCAB10 10 ft (305 cm) HCAB18 18 ft (549 cm)
HCAB11 11 ft (335.5 cm) HCAB19 19 ft (579.5 cm)
HCAB12 12 ft (366 cm) HCAB20 20 ft (610 cm)

HCAB..

390 V-Quipment - Want to know more? Visit www.vetus.com
