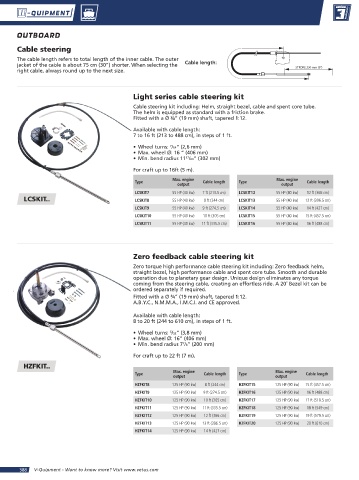

OUTBOARD
Cable steering

The cable length refers to total length of the inner cable. The outer
jacket of the cable is about 75 cm (30”) shorter. When selecting the Cable length: STROKE 230 mm (9”)
right cable, always round up to the next size.

Light series cable steering kit
Cable steering kit including: Helm, straight bezel, cable and spent core tube.
The helm is equipped as standard with a friction brake.
Fitted with a Ø ¾” (19 mm) shaft, tapered 1:12.
Available with cable length:
7 to 16 ft (213 to 488 cm), in steps of 1 ft.

• Wheel turns: /64“ (2,6 mm)
7
• Max. wheel Ø: 16 “ (406 mm)
• Min. bend radius 11 /64” (302 mm)
57
For craft up to 16ft (5 m).
Max. engine Max. engine
Type Cable length Type Cable length
output output
LCSKIT7 55 HP (40 kw) 7 ft (213.5 cm) LCSKIT12 55 HP (40 kw) 12 ft (366 cm)
LCSKIT.. LCSKIT8 55 HP (40 kw) 8 ft (244 cm) LCSKIT13 55 HP (40 kw) 13 ft (396.5 cm)
LCSKIT9 55 HP (40 kw) 9 ft (274.5 cm) LCSKIT14 55 HP (40 kw) 14 ft (427 cm)
LCSKIT10 55 HP (40 kw) 10 ft (305 cm) LCSKIT15 55 HP (40 kw) 15 ft (457.5 cm)
LCSKIT11 55 HP (40 kw) 11 ft (335.5 cm) LCSKIT16 55 HP (40 kw) 16 ft (488 cm)

Zero feedback cable steering kit
Zero torque high performance cable steering kit including: Zero feedback helm,
straight bezel, high performance cable and spent core tube. Smooth and durable
operation due to planetary gear design. Unique design eliminates any torque
coming from the steering cable, creating an effortless ride. A 20˚ Bezel kit can be
ordered separately if required.
Fitted with a Ø ¾” (19 mm) shaft, tapered 1:12.
A.B.Y.C., N.M.M.A., I.M.C.I. and CE approved.

Available with cable length:
8 to 20 ft (244 to 610 cm), in steps of 1 ft.
• Wheel turns: /32” (3,8 mm)
5
• Max. wheel Ø: 16” (406 mm)
• Min. bend radius 7 /8” (200 mm)
7
For craft up to 22 ft (7 m).
HZFKIT..
Max. engine Max. engine
Type Cable length Type Cable length
output output
HZFKIT8 125 HP (90 kw) 8 ft (244 cm) HZFKIT15 125 HP (90 kw) 15 ft (457.5 cm)
HZFKIT9 125 HP (90 kw) 9 ft (274.5 cm) HZFKIT16 125 HP (90 kw) 16 ft (488 cm)
HZFKIT10 125 HP (90 kw) 10 ft (305 cm) HZFKIT17 125 HP (90 kw) 17 ft (518.5 cm)
HZFKIT11 125 HP (90 kw) 11 ft (335.5 cm) HZFKIT18 125 HP (90 kw) 18 ft (549 cm)
HZFKIT12 125 HP (90 kw) 12 ft (366 cm) HZFKIT19 125 HP (90 kw) 19 ft (579.5 cm)
HZFKIT13 125 HP (90 kw) 13 ft (396.5 cm) HZFKIT20 125 HP (90 kw) 20 ft (610 cm)
HZFKIT14 125 HP (90 kw) 14 ft (427 cm)
