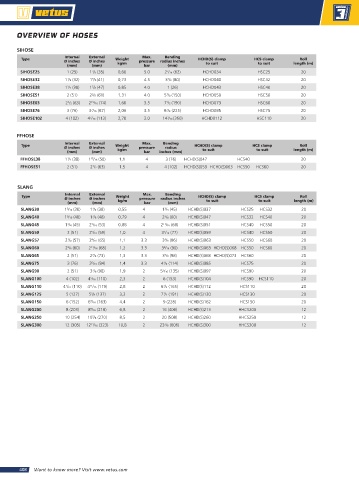

OVERVIEW OF HOSES

SIHOSE
Internal External Max. Bending
Type Weight HCHD(S) clamp HCS clamp Roll
Ø inches Ø inches pressure radius inches
(mm) (mm) kg/m bar (mm) to suit to suit length (m)
SIHOSE25 1 (25) 1 /8 (35) 0,60 5.0 2 /16 (62) HCHD034 HSC25 20
7
3
SIHOSE32 1 /4 (32) 1 /8 (41) 0,73 4.5 3 /8 (80) HCHD040 HSC32 20
5
1
1
SIHOSE38 1 /2 (38) 1 /8 (47) 0,85 4.0 1 (26) HCHD043 HSC40 20
7
1
SIHOSE51 2 (51) 2 /8 (61) 1,31 4.0 5 /8 (150) HCHD059 HSC50 20
7
3
SIHOSE63 2 /2 (63) 2 /16 (74) 1,60 3.5 7 /2 (190) HCHD073 HSC60 20
1
15
1
7
SIHOSE76 3 (76) 3 /16 (87) 2,06 3.5 8 /8 (225) HCHD085 HSC75 20
7
SIHOSE102 4 (102) 4 /16 (113) 2,70 2.0 14 /16 (360) HCHD0112 HSC110 20
7
3
FFHOSE
Internal External Max. Bending
Type Ø inches Ø inches Weight pressure radius HCHD(S) clamp HCS clamp Roll
(mm) (mm) kg/m bar inches (mm) to suit to suit length (m)
FFHOSE38 1 /2 (38) 1 /16 (50) 1,1 4 3 (76) HCHD(S)047 HCS40 20
1
15
1
FFHOSE51 2 (51) 2 /2 (63) 1,5 4 4 (102) HCHD(S)059 HCHD(S)063 HCS50 HCS60 20
SLANG
Internal External Max. Bending
Type Weight HCHD(S) clamp HCS clamp Roll
Ø inches Ø inches pressure radius inches
(mm) (mm) kg/m bar (mm) to suit to suit length (m)
SLANG30 1 /16 (30) 1 /2 (38) 0,55 4 1 /4 (45) HCHD(S)037 HCS25 HCS32 20
3
1
3
3
7
SLANG40 1 /16 (40) 1 /8 (48) 0,79 4 2 /8 (60) HCHD(S)047 HCS32 HCS40 20
9
SLANG45 1 /4 (45) 2 /16 (53) 0,88 4 2 /16 (68) HCHD(S)051 HCS40 HCS50 20
1
11
3
SLANG50 2 (51) 2 /16 (59) 1,0 4 3 /16 (77) HCHD(S)059 HCS40 HCS50 20
1
5
SLANG57 2 /4 (57) 2 /16 (65) 1,1 3.3 3 /8 (86) HCHD(S)063 HCS50 HCS60 20
3
9
1
11
3
SLANG60 2 /8 (60) 2 /16 (68) 1,2 3.3 3 /16 (90) HCHD(S)063 HCHD(S)068 HCS50 HCS60 20
9
SLANG65 2 (51) 2 /8 (73) 1,3 3.3 3 /8 (98) HCHD(S)068 HCHD(S)073 HCS60 20
7
7
SLANG75 3 (76) 3 /16 (84) 1,4 3.3 4 /2 (114) HCHD(S)085 HCS75 20
5
1
SLANG90 2 (51) 3 /8 (98) 1,9 2 5 /16 (135) HCHD(S)097 HCS90 20
5
7
SLANG100 4 (102) 4 /16 (110) 2,3 2 6 (153) HCHD(S)104 HCS90 HCS110 20
5
SLANG110 4 /16 (110) 4 /16 (119) 2,8 2 6 /2 (165) HCHD(S)112 HCS110 20
5
11
1
SLANG125 5 (127) 5 /8 (137) 3,3 2 7 /2 (191) HCHD(S)130 HCS130 20
3
1
SLANG150 6 (152) 6 /16 (163) 4,4 2 9 (228) HCHD(S)162 HCS150 20
7
SLANG200 8 (203) 8 /16 (218) 6,8 2 16 (406) HCHD(S)213 HHCS200 12
9
SLANG250 10 (254) 10 /8 (270) 8,5 2 20 (508) HCHD(S)260 HHCS250 12
5
SLANG300 12 (305) 12 /16 (323) 10,8 2 23 /8 (606) HCHD(S)300 HHCS300 12
11
7
408 Want to know more? Visit www.vetus.com
