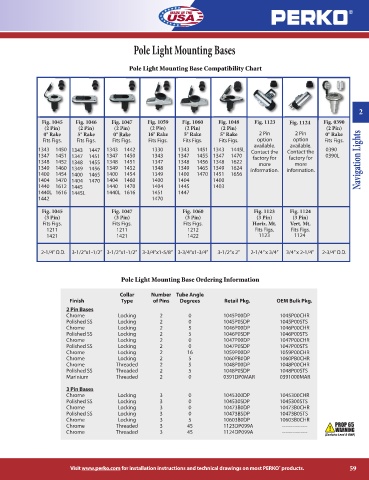

Page 59 - Perko

Pole Light Mounting Bases

Pole Light Mounting Base Compatibility Chart

2
Fig. 1045 Fig. 1046 Fig. 1047 Fig. 1059 Fig. 1060 Fig. 1048 Fig. 1123 Fig. 1124 Fig. 0390
(2 Pin) (2 Pin) (2 Pin) (2 Pin) (2 Pin) (2 Pin) (2 Pin)
0° Rake 5° Rake 0° Rake 16° Rake 5° Rake 5° Rake 2 Pin 2 Pin 0° Rake
Fits Figs. Fits Figs. Fits Figs. Fits Figs. Fits Figs. Fits Figs. option option Fits Figs.
available. available.
1343 1450 1343 1447 1343 1442 1330 1343 1451 1343 1445L Contact the Contact the 0390
1347 1451 1347 1451 1347 1450 1343 1347 1455 1347 1470 factory for factory for 0390L
1348 1452 1348 1455 1348 1451 1347 1348 1456 1348 1622 more more Navigation Lights
1349 1460 1349 1456 1349 1452 1348 1349 1465 1349 1624 information. information.
1400 1454 1400 1465 1400 1454 1349 1400 1470 1451 1656
1404 1470 1404 1470 1404 1460 1400 1404 1400
1440 1612 1445 1440 1470 1404 1445 1403
1440L 1616 1445L 1440L 1616 1451 1447
1442 1470

Fig. 1045 Fig. 1047 Fig. 1060 Fig. 1123 Fig. 1124
(3 Pin) (3 Pin) (3 Pin) (3 Pin) (3 Pin)
Fits Figs. Fits Figs. Fits Figs. Horiz. Mt. Vert. Mt.
1211 1211 1212 Fits Figs. Fits Figs.
1421 1421 1422 1123 1124

2-1/4” O.D. 3-1/2”x1-1/2” 3-1/2”x1-1/2” 3-3/4”x1-5/8” 3-3/4”x1-3/4” 3-1/2”x 2” 2-1/4” x 3/4” 3/4” x 2-1/4” 2-3/4” O.D.

Pole Light Mounting Base Ordering Information

Collar Number Tube Angle
Finish Type of Pins Degrees Retail Pkg. OEM Bulk Pkg.
2 Pin Bases
Chrome Locking 2 0 1045P00DP 1045P00CHR
Polished SS Locking 2 0 1045P0SDP 1045P00STS
Chrome Locking 2 5 1046P00DP 1046P00CHR
Polished SS Locking 2 5 1046P0SDP 1046P00STS
Chrome Locking 2 0 1047P00DP 1047P00CHR
Polished SS Locking 2 0 1047P0SDP 1047P00STS
Chrome Locking 2 16 1059P00DP 1059P00CHR
Chrome Locking 2 5 1060PB0DP 1060PB0CHR
Chrome Threaded 2 5 1048P00DP 1048P00CHR
Polished SS Threaded 2 5 1048P0SDP 1048P00STS
Marinium Threaded 2 0 0391DP0MAR 0391000MAR

3 Pin Bases
Chrome Locking 3 0 1045300DP 1045300CHR
Polished SS Locking 3 0 104530SDP 1045300STS
Chrome Locking 3 0 10473B0DP 10473B0CHR
Polished SS Locking 3 0 10473BSDP 10473B0STS
Chrome Locking 3 5 10603B0DP 10603B0CHR
Chrome Threaded 3 45 1123DP099A ---------------
Chrome Threaded 3 45 1124DP099A ---------------

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 59
®
