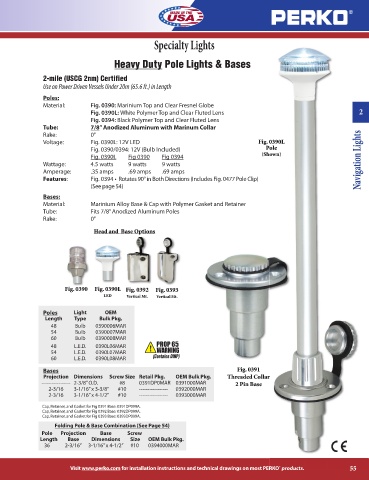

Specialty Lights

Heavy Duty Pole Lights & Bases

2-mile (USCG 2nm) Certified
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length

Poles:
Material: Fig. 0390: Marinium Top and Clear Fresnel Globe
Fig. 0390L: White Polymer Top and Clear Fluted Lens 2
Fig. 0394: Black Polymer Top and Clear Fluted Lens
Tube: 7/8” Anodized Aluminum with Marinum Collar
Rake: 0°
Voltage: Fig. 0390L: 12V LED Fig. 0390L
Fig. 0390/0394: 12V (Bulb Included) Pole
(Shown)
Fig. 0390L Fig 0390 Fig 0394 Navigation Lights
Wattage: 4.5 watts 9 watts 9 watts
Amperage: .35 amps .69 amps .69 amps
Features: Fig. 0394 • Rotates 90° in Both Directions (Includes Fig. 0477 Pole Clip)
(See page 54)
Bases:
Material: Marinium Alloy Base & Cap with Polymer Gasket and Retainer
Tube: Fits 7/8” Anodized Aluminum Poles
Rake: 0°

Head and Base Options

Fig. 0390 Fig. 0390L Fig. 0392 Fig. 0393
LED Vertical Mt. Vertical Mt.

Poles
Light OEM
Length Type Bulk Pkg.
48 Bulb 0390006MAR
54 Bulb 0390007MAR
60 Bulb 0390008MAR
48 L.E.D. 0390L06MAR
54 L.E.D. 0390L07MAR
60 L.E.D. 0390L08MAR
Bases Fig. 0391
Projection Dimensions Screw Size Retail Pkg. OEM Bulk Pkg. Threaded Collar
----------------- 2-3/8” O.D. #8 0391DP0MAR 0391000MAR 2 Pin Base
2-3/16 3-1/16” x 3-3/8” #10 ----------------- 0392000MAR
2-3/16 3-1/16” x 4-1/2” #10 ----------------- 0393000MAR
Cap, Retainer, and Gasket for Fig 0391 Base: 0391DP099A.
Cap, Retainer, and Gasket for Fig 0392 Base: 0392DP099A.
Cap, Retainer, and Gasket for Fig 0393 Base: 0393DP099A.
Folding Pole & Base Combination (See Page 54)
Pole Projection Base Screw
Length Base Dimensions Size OEM Bulk Pkg.
36 2-3/16” 3-1/16” x 4-1/2” #10 0394000MAR

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 55
